Welding Steel Rods Underwater: Electrode Types And Challenges​

In the realm of marine engineering, offshore construction, and underwater infrastructure maintenance, the task of welding steel rods underwater is both critical and technically demanding. Unlike traditional above-water welding, underwater welding operates in a harsh environment characterized by water pressure, thermal conductivity, and potential electrical hazards. At the heart of this specialized process lies the selection and application of welding electrodes, which play a pivotal role in determining the quality, durability, and efficiency of the weld. This article delves into the key types of electrode used in welding for underwater steel rod welding, the unique challenges faced, and addresses frequently asked questions to help professionals and enthusiasts make informed decisions.​

Understanding the basics of underwater welding steel rod and electrode functionality

Underwater welding steel rod is a process that joins steel components beneath the water surface, essential for constructing piers, offshore platforms, underwater pipelines, and repairing submerged structures. The primary goal is to create a strong, impermeable bond that can withstand the corrosive marine environment and mechanical stresses. Welding electrodes serve as both the conductor of the electric current and the source of filler material, melting to form the weld pool alongside the base metal of the steel rod.​

The unique underwater environment imposes specific requirements on electrodes. Water acts as an efficient heat sink, causing rapid cooling of the weld pool, which can lead to issues like hydrogen embrittlement if not managed properly. Electrodes must be designed to generate sufficient arc stability despite the presence of water, while also providing shielding gas or slag to protect the molten metal from contamination by water-borne impurities such as oxygen and hydrogen. Common electrode coatings for underwater use include cellulose-based, rutile-based, and basic (low-hydrogen) formulations, each offering different advantages in terms of arc performance, slag removal, and resistance to environmental factors.​

Exploring the key types of electrode used in welding for underwater steel rod applications

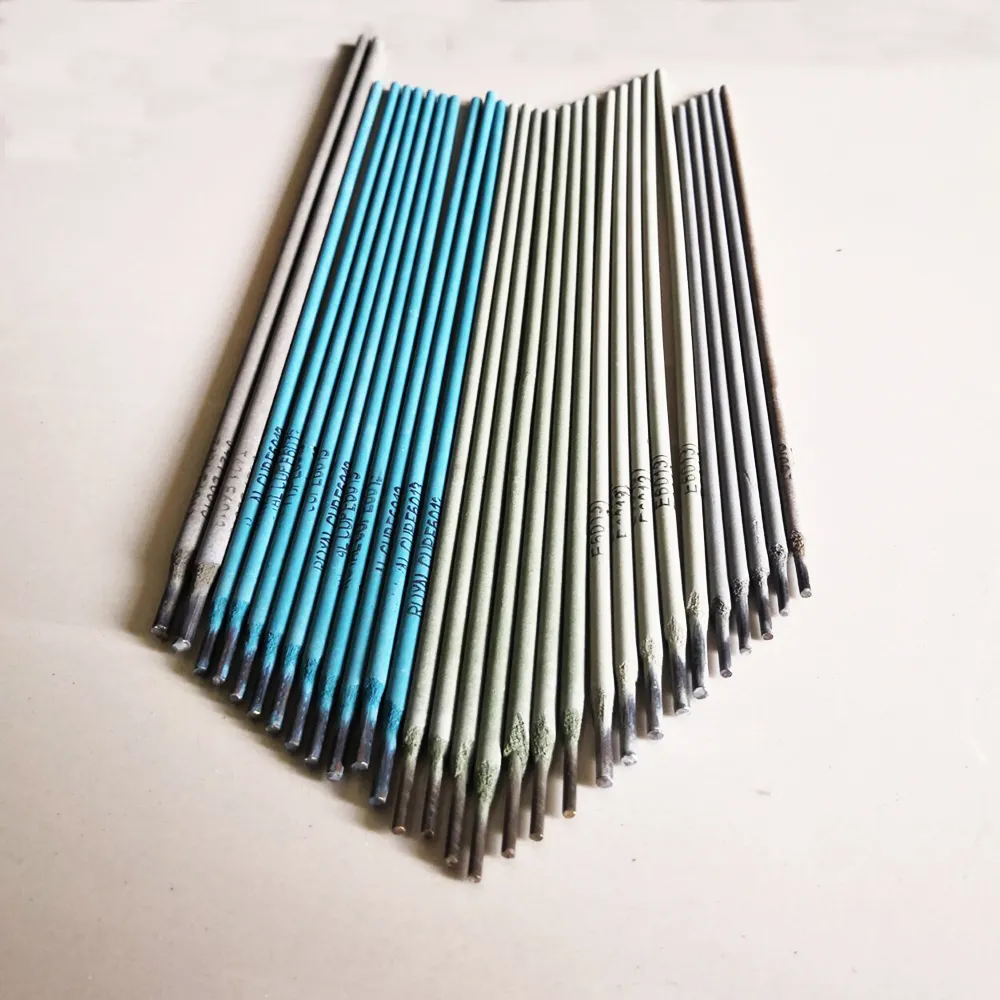

The selection of types of electrode used in welding for underwater steel rods depends on factors such as the thickness of the steel, welding position (horizontal, vertical, overhead), desired mechanical properties of the weld, and environmental conditions. Here are the most commonly employed electrode types:​

1. Cellulose-coated electrodes (EXX10/EXX11 series)​

These electrodes feature a coating rich in cellulose, which decomposes during welding to produce a large amount of gas (primarily hydrogen and carbon dioxide). This gas shield effectively displaces water from the weld area, creating a temporary protective environment. Cellulose electrodes offer excellent arc penetration, making them suitable for welding thick steel sections and in all positions. They are particularly useful in shallow underwater applications where the gas shielding is less affected by water pressure. However, they tend to produce higher hydrogen levels in the weld, which requires careful post-weld heat treatment to prevent cracking.​

2. Rutile-coated electrodes (EXX12/EXX13 series)​

Rutile-based electrodes provide a stable arc and smooth welding operation, producing a moderate amount of slag that is easy to remove. The rutile coating contains titanium dioxide, which enhances arc stability and allows for faster welding speeds. These electrodes are suitable for both AC and DC power sources and are often used in underwater applications where a balance between productivity and weld quality is required. They are ideal for welding thinner steel rods and in situations where a aesthetically pleasing weld bead is necessary, though their gas shielding capability is slightly less than cellulose electrodes in deeper water.​

3. Basic (low-hydrogen) electrodes (EXX15/EXX16 series)​

Designed to minimize hydrogen incorporation into the weld, basic electrodes have a calcium carbonate-based coating that produces a low-hydrogen environment. This is crucial for preventing hydrogen-induced cracking, especially in high-strength steel rods or when welding in cold water conditions. While they require DC power with reverse polarity and demand more skill to operate due to their shorter arc length, basic electrodes offer superior mechanical properties and resistance to corrosion, making them the preferred choice for critical underwater structures that require long-term reliability.​

Key challenges in underwater welding electrodes selection and application

Despite the advancements in electrode technology, underwater welding of steel rods using welding electrodes presents several challenges that must be addressed to ensure successful outcomes:​

1. Environmental factors​

Water depth affects the pressure exerted on the weld pool, which can disrupt the gas shielding and arc stability. Deeper waters require electrodes that can maintain a consistent arc and produce sufficient gas to counteract the increased pressure. Additionally, the temperature of the water impacts the cooling rate of the weld, with colder water increasing the risk of brittle microstructures. Electrode coatings must be formulated to adjust the solidification rate and chemical composition of the weld metal to mitigate these effects.​

2. Electrode performance consistency​

Underwater welding often involves working in visually impaired conditions, relying on the welder's experience and the electrode's performance characteristics. Inconsistent electrode quality, such as variations in coating thickness or chemical composition, can lead to unpredictable arc behavior, incomplete fusion, or porosity. Ensuring strict quality control during electrode manufacturing is essential to maintain reliability in the field.​

3. Corrosion resistance​

The marine environment is highly corrosive, with saltwater accelerating the degradation of welds over time. Welding electrodes must deposit filler metal with appropriate alloying elements (such as chromium, nickel, and molybdenum) to enhance the weld's corrosion resistance. Choosing the right electrode type based on the specific corrosive conditions of the underwater site is vital for the long-term integrity of the steel structure.​

FAQ: Everything you need to know about underwater welding electrodes for steel rods

What are the main advantages of using specialized types of electrode used in welding for underwater steel rods?

Specialized underwater welding electrodes are designed to overcome the unique challenges of the marine environment, offering benefits such as improved arc stability, effective gas shielding against water contamination, and enhanced resistance to corrosion and hydrogen-induced cracking. They ensure that welds meet the high mechanical and environmental performance standards required for underwater structures, reducing the need for costly repairs and maintenance.​

How do I choose the right welding electrodes for my specific underwater welding steel rod project?

Consider factors such as the thickness and grade of the steel rod, welding position, water depth, and environmental conditions (e.g., saltwater vs. freshwater, temperature). Thicker steel and deeper waters may require cellulose or basic electrodes for better penetration and low-hydrogen properties, while thinner steel and shallow applications might benefit from rutile electrodes for faster welding and ease of use. Consult with electrode manufacturers or welding experts to match the electrode type to your project's requirements.​

Can these welding electrodes provide consistent weld quality in harsh underwater conditions?

Yes, when sourced from reputable manufacturers and used correctly, specialized underwater welding electrodes are engineered to deliver consistent quality even in challenging environments. Proper storage (to prevent moisture absorption), correct welding parameters (current, voltage, travel speed), and welder training are essential to maximizing electrode performance and achieving reliable welds.​

Are there types of electrode used in welding that offer both high strength and excellent corrosion resistance for long-term underwater structures?

Yes, basic (low-hydrogen) electrodes and certain specialized alloy electrodes are formulated to provide high tensile strength, low hydrogen content, and improved corrosion resistance. These are ideal for critical applications such as offshore platforms and underwater pipelines, where the welds must withstand constant mechanical stress and the corrosive effects of saltwater over many years.​

What after-sales support or technical guidance is available for using underwater welding electrodes?

Reputable electrode suppliers often provide comprehensive technical data sheets, welding procedure specifications, and on-site support to help customers optimize their welding processes. They can assist with electrode selection, troubleshooting common issues, and ensuring compliance with industry standards, ensuring that your underwater welding steel rod projects are completed safely and successfully.​

By understanding the types of electrode used in welding, the challenges involved, and addressing key customer concerns through these FAQs, professionals can make informed choices to achieve high-quality, durable underwater welds that stand the test of time in some of the most demanding environments.
