Production Description
E7018 is a multi-purpose electrode with excellent handling properties. 7018 performs especially well when welding mild steel or low alloy steel, such as bridges, construction, shipbuilding and pressure vessel manufacturing, etc. The E7018 can also be used in construction and maintenance of a range of engineering machinery such as bulldozers, agricultural or mining equipment.

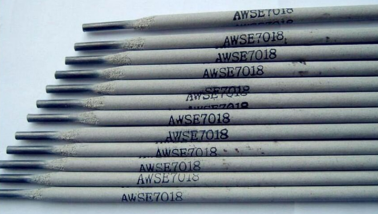

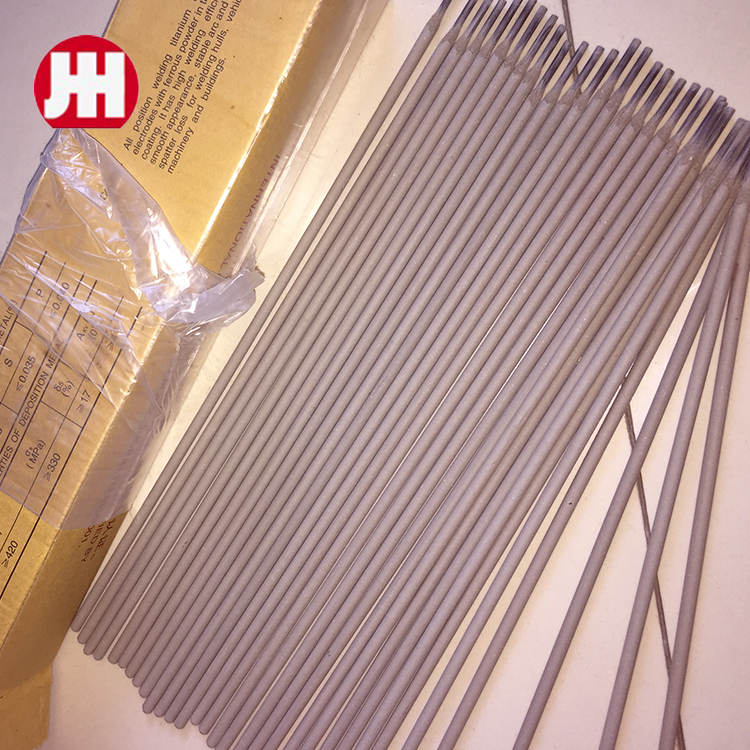

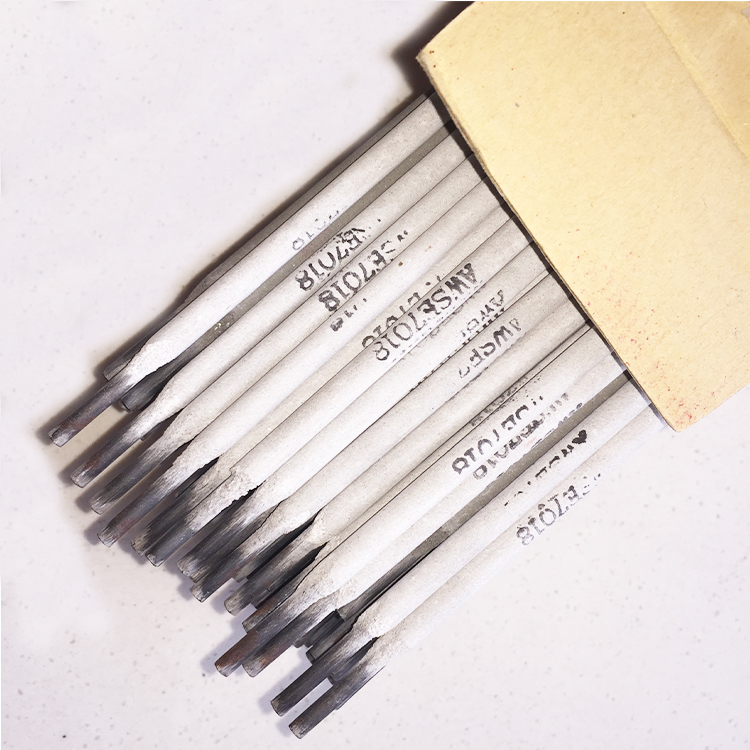

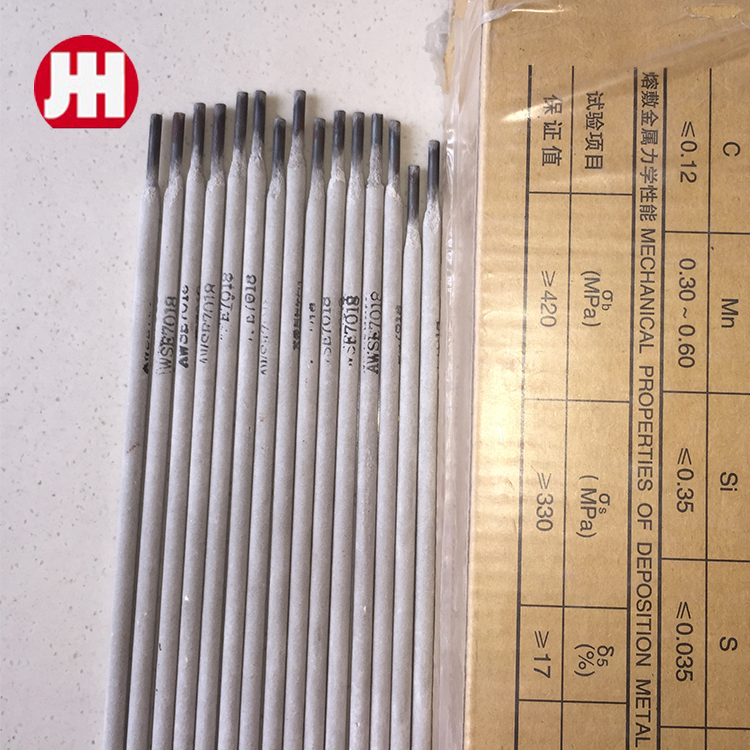

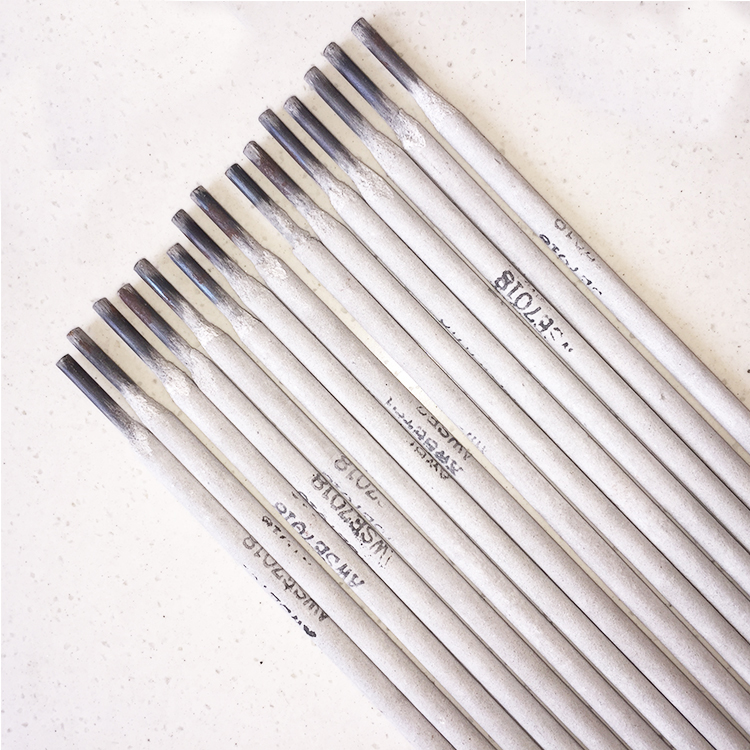

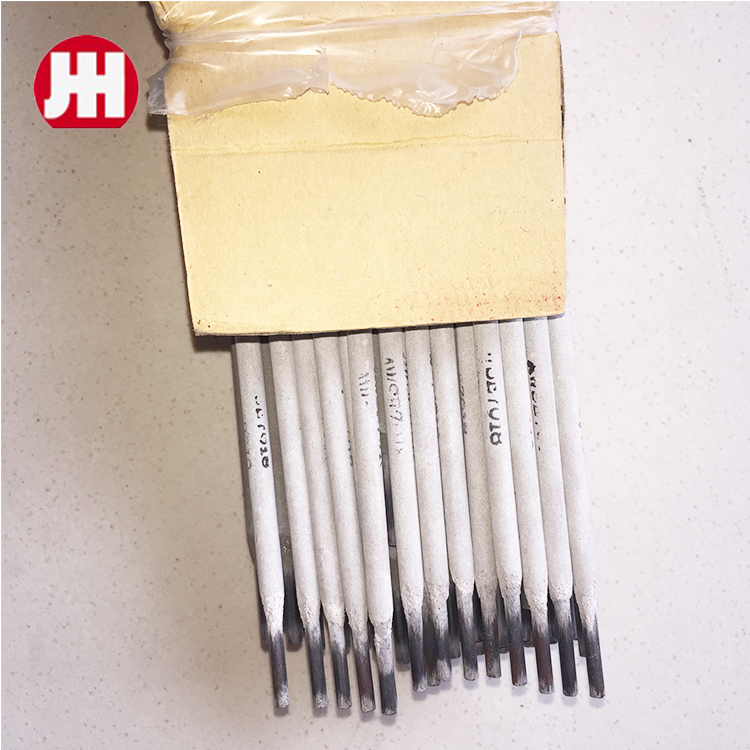

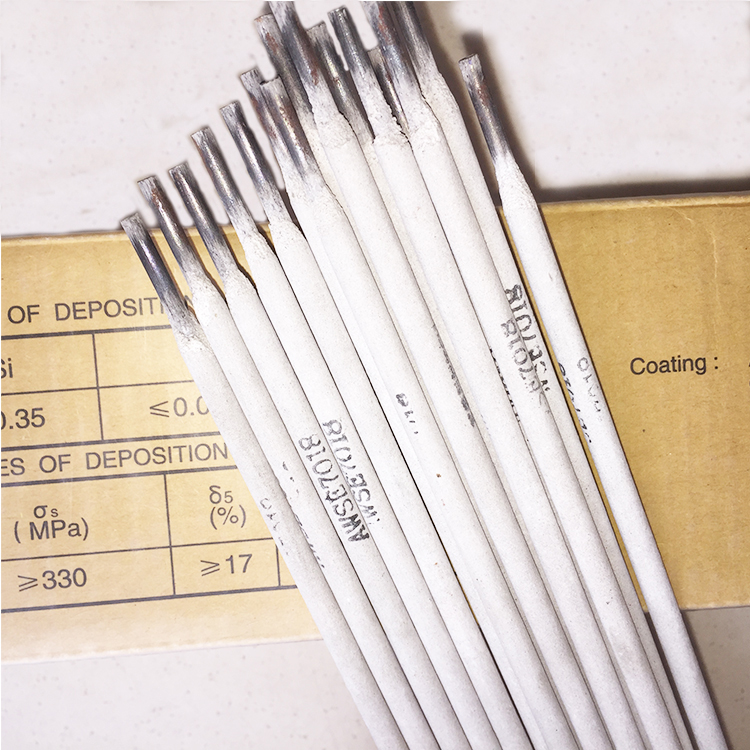

AWS E7018 Carbon Steel Electrode Carbon Steel Electrode Description: E7018 is a carbon steel electrode with iron powder and low hydrogen potassium coating. Both AC and DC can be used for all-position welding. Its characteristic is that the coating contains iron powder, which can reduce the number of welding layers. Uses: Suitable for welding carbon steel and low alloy steel, such as 16Mn, etc.
It can improve deposition efficiency because of the iron powder in the coating. Its arc is more stable with less spatter.It is easy to remove the residue. It can provide both beautiful welding line shape and good deposited metal mechanical performance.And the current can be AC or DC.It can be used for all position welding.
WELDING POSITIONS:
PA, PB, PC, PD, PE, PF.
X-ray flaw detection: Ⅰ level.
E7018 has excellent welding performance, excellent operating performance, easy reignition, stable arc and beautiful appearance of weld.
We has devoting ourselves to producing and trading for 10 years,establishing a good relationship with the company of US,Canada, Mid east MARKET and so on. As a professional manufacturer, our factory began to produce welding wire since 2010. ER70S-6 welding wire and welding electrode E6013 E7018 E6010 E6011 is our main product. We also supply aluminum welding wire,stainless steel welding wire, flux cored wire, surfacing welding wire,copper alloy welding wire and welding accessories.
Please Contact me
Different sizes, different prices. Contact me for more details!
24 hours online for you~
Need a quick quotation for E7018? Chat with us on WhatsApp or email info@steeltoolschina.com.
Compare our complete E7018 low hydrogen electrodes line, or view all welding electrodes.
E7018 Wholesale Price FAQ
How is the E7018 price per kg determined?
The price depends on diameter, packing format, order quantity and delivery terms. Because these vary between orders, we quote against the specific combination rather than publishing a single list price.
What affects the price most?
Order volume and packing choice. Larger volumes and standard box packing cost less per kg than small orders or custom artwork and non standard pack weights, since setup and handling are spread over fewer tons.
What sizes are available for wholesale orders?
2.0mm at 300mm, 2.5mm at 300mm or 350mm, 3.2mm at 350mm, 4.0mm at 400mm and 5.0mm at 450mm. Mixed diameter orders can be arranged within a single shipment.
What is the packing weight per carton?
20kg per carton. 2.0 and 2.5mm pack eight boxes of 2.5kg, while 3.2 and 4.0mm pack four boxes of 5kg. Net weight 20.00kg, gross weight 20.40kg.
Can wholesale orders carry our brand?
Yes. OEM and ODM packaging is available at wholesale volumes, with your brand and logo on the box. Artwork is prepared by our designer and confirmed before production begins.
Chemical Composition:
C | Mn | Si | S | P |
≤0.12 | ≤1.6 | ≤0.75 | ≤0.035 | ≤0.035 |
Mechanical Property:
AWS A5.1 | Tensile Strength Rm | Yield Strength Rel | Elongation A | Akv | KV2 |
MPa | MPa | % | J | 0 degree/J | |
E7018 | ≥490 | ≥400 | ≥22 | ≥27 | -30 |
Specification & Package
2.0mm (5/64”) x 300mm, 2.5kgs/box, 20kg(8boxes) per carton.
2.5mm (3/32”) x 300/350mm; 2.5kgs/box, 20kg(8boxes) per carton.
3.2mm (1/8”) x 350mm; 5kgs/box, 20kg(4boxes) per carton.
4.0mm (5/32”) x 400mm; 5kgs/box, 20kg(4boxes) per carton.
5.0mm x 450mm; other size please contact our service.
OEM/ODM Package Available:
NW: 20.00KG,GW: 20.40KG,
we also can do different kgs package, plastic bag package,
we can print the package as your requests, we have professional designer to make the package design with your brand & LOGO.
