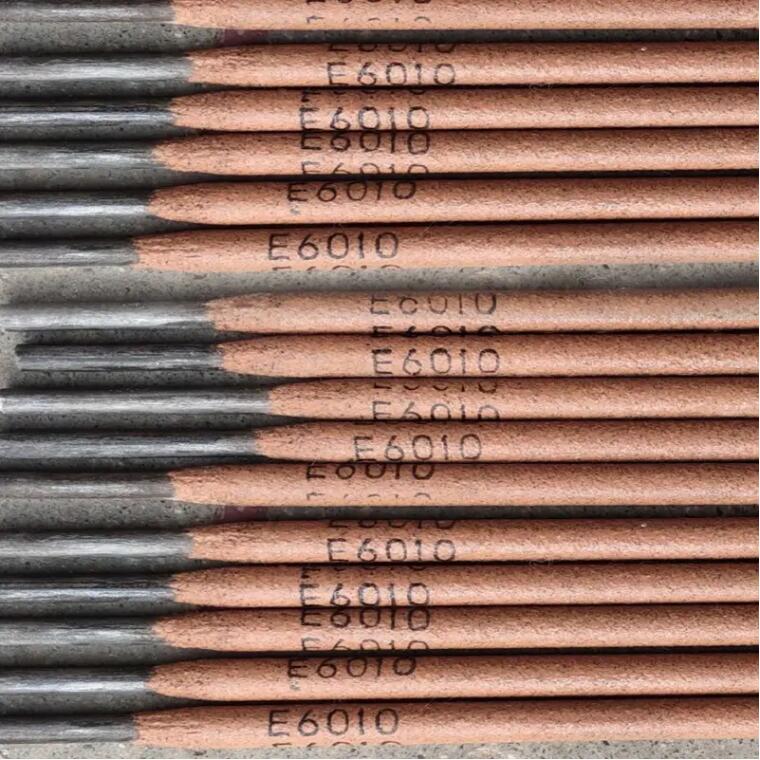

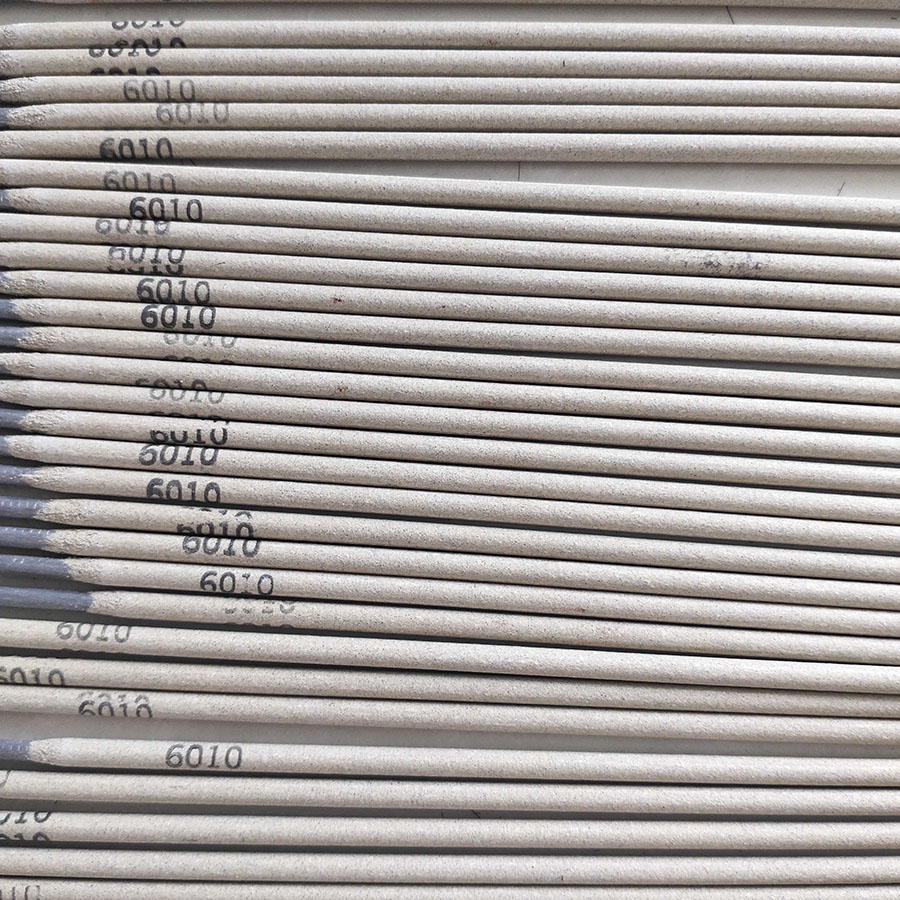

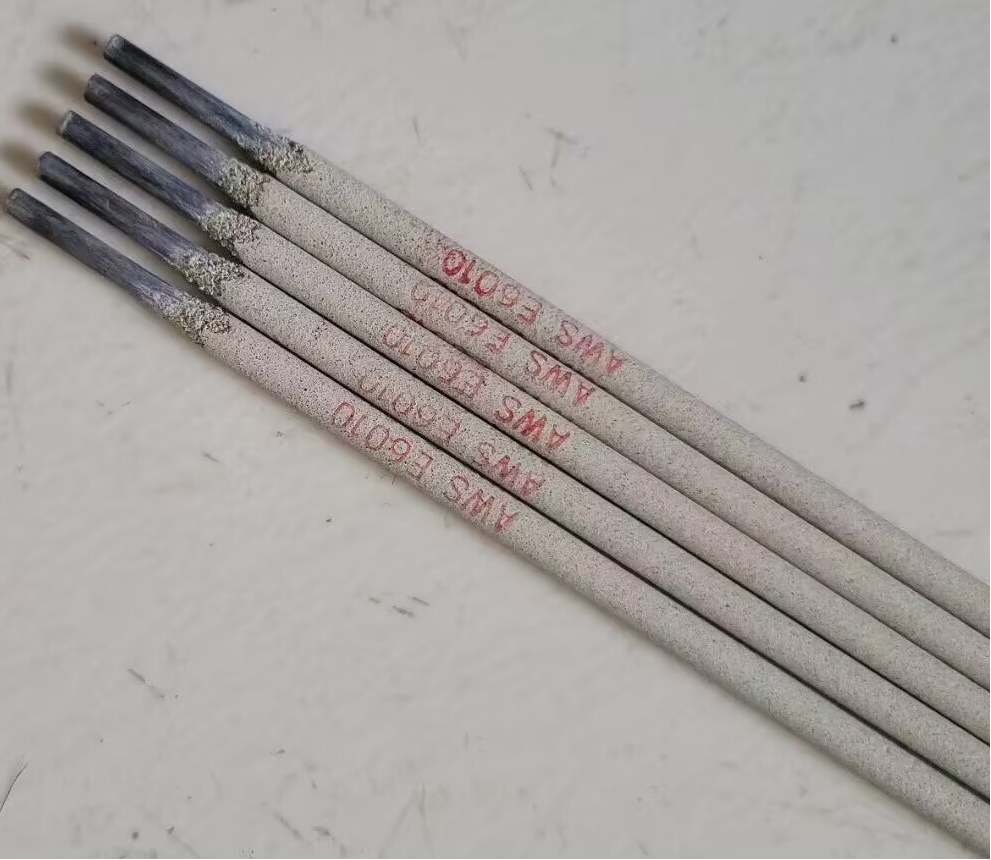

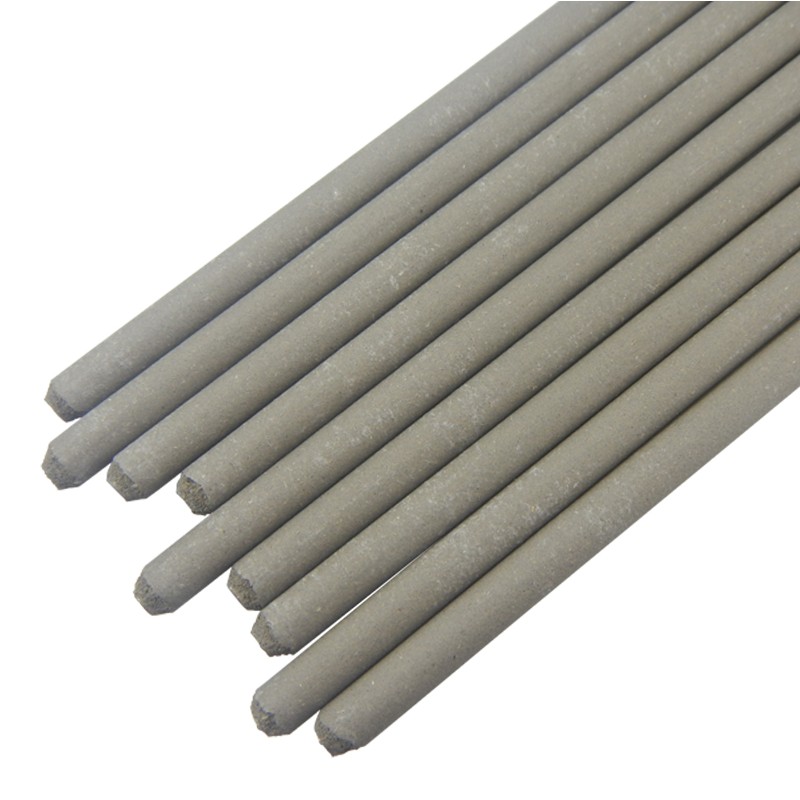

Cellulose Welding Rod E6010 for Carbon Steel Pipes

E6010 is a high cellulose sodium type covered vertical downward electrode.

PDF DOWNLOAD
Product Detail
Tag

Production Description

E6010 is a high cellulose sodium type covered vertical downward electrode. "E6010" is the model of welding rod, we are one of the largest manufacturers in China. Type: Pipe Welding Rod. Material: Alloy. Conforms to GB E4310, equivalent to AWS E6010.

AWS E6010 has strong arc blowing force, single-sided welding and double-sided forming, less slag, easy to remove, beautiful welding wave formation, fast welding speed, good mechanical properties of deposited metal, and excellent anti-porosity and crack resistance. It is a special welding electrode for all-position vertical downward welding of the circular seam on the pipeline site. The welding adopts DC reverse polarity. When welding the bottom layer, it can be welded on one side and formed on both sides, and the welding speed is fast.

Scope of application: Widely used in the field of pipe girth welding. It is used for the circular seam butt joint of various carbon steel pipes, and is also suitable for vertical downward welding of general carbon steel structures.

Furnace pressure vessels, large bridges, etc.

Executive standard: GB/T5117-1995 "Carbon Steel Electrode" AWS A5.1 "Carbon Steel Electrode for Manual Arc Welding"

Technical indicators: Please refer to the table below, or contact us to provide a quality inspection form.

Precautions:

  1. It is not allowed to re-bake the electrode before use.
  2. This type of electrode should be stored in a closed container. Once the package is opened, it should be used as soon as possible to avoid prolonged exposure to sunlight or environments with large temperature changes.
  3. The interlayer temperature should not exceed 150C.

6010 Welding Electrode Welding rocess precautions:

  1. Welders must wear work clothes, welding gloves and foot covers when welding. It is absolutely not allowed to roll up the cuffs, wear short-sleeved clothes or open clothes to perform welding work, so as to prevent the skin from being burned by welding spatter.
  2. When the welder replaces the welding rod during the welding process, it is strictly forbidden to throw the welding rod head, so as not to burn others and cause fire accidents.

Chemical Composition:

C

Mn

Si

S

P

≤0.12

0.3-0.6

≤0.2

≤0.035

≤0.040



Mechanical Property:

AWS A5.1

Tensile Strength

Rm

Yield Strength

Rel

Elongation

A

Akv

KV2

MPa

MPa

%

J

0 degree/J

E6010

≥460

≥340

≥25

70-130

-29

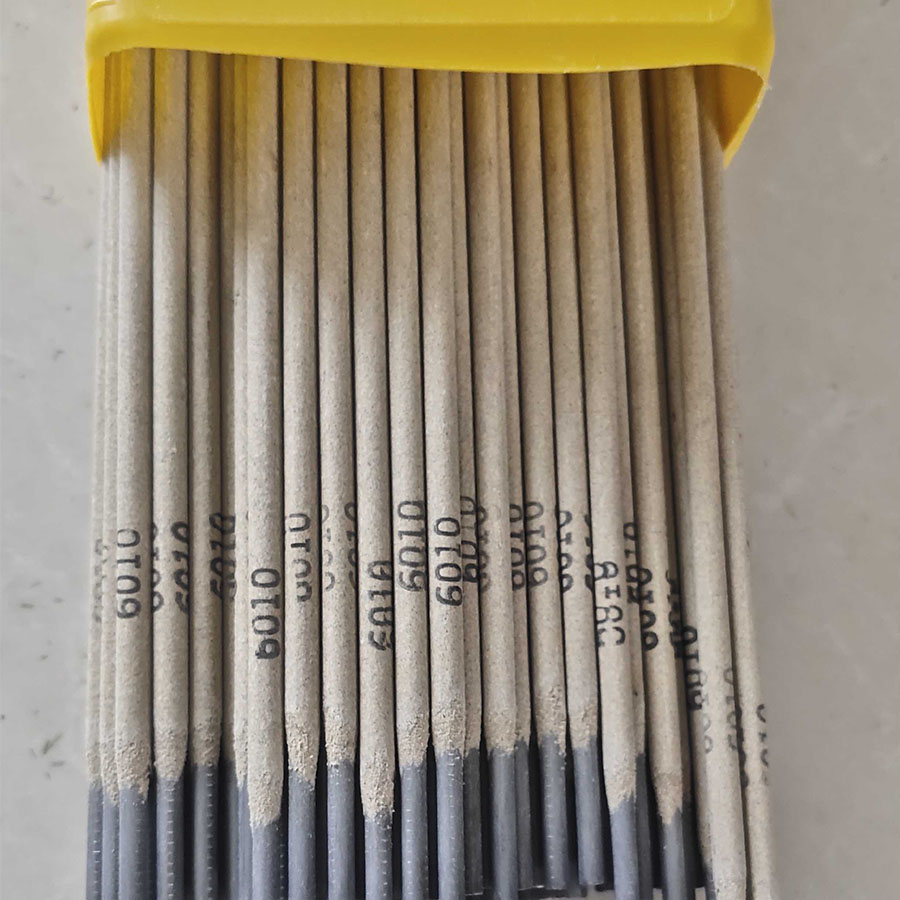

Specification & Package

2.0mm (5/64”) x 300mm,   2.5kgs/box, 20kg(8boxes) per carton.

2.5mm (3/32”) x 300/350mm;   2.5kgs/box, 20kg(8boxes) per carton.

3.2mm (1/8”) x 350mm;        5kgs/box, 20kg(4boxes) per carton.

4.0mm (5/32”) x 400mm;       5kgs/box, 20kg(4boxes) per carton.

5.0mm x 450mm; other size please contact our service.



OEM/ODM Package Available:

NW: 20.00KG,GW: 20.40KG,

we also can do different kgs package, plastic bag package,

we can print the package as your requests, we have professional designer to make the package design with your brand & LOGO.

  • Specification-&-Package
  • Specification-&-Package-08
  • Specification-&-Package-09
