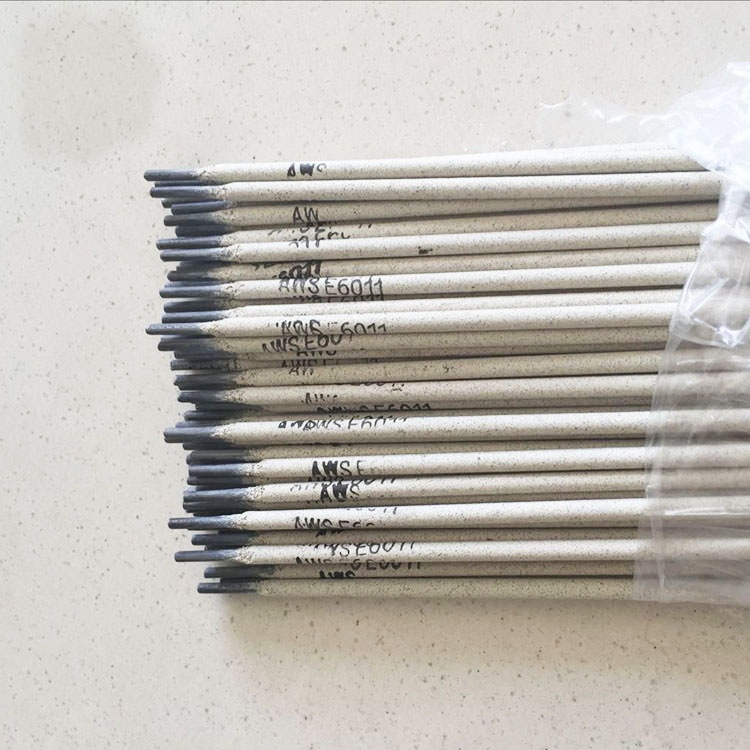

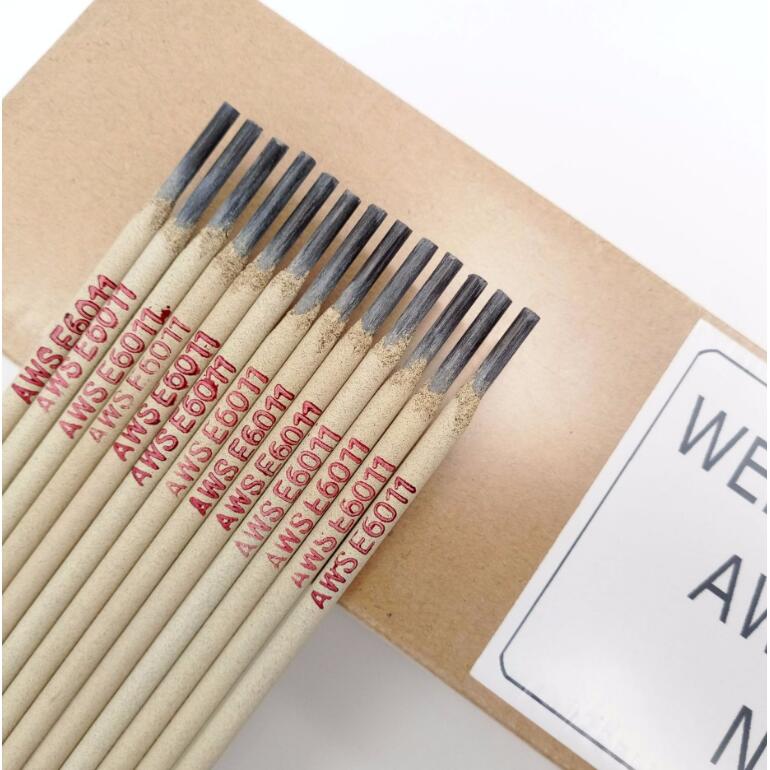

E6011 WELDING RODS
Superior Arc Stability: E6011 welding rods excel in providing precise and controlled welds, even under challenging conditions, ensuring exceptional arc stability for professional welders.
Deep Penetration Capabilities: With the ability to weld thick materials effectively, these electrodes offer deep penetration, making them an ideal choice for a wide range of welding applications.
Versatile AC/DC Operation: E6011 rods can operate on both AC and DC currents, enhancing their adaptability and making them suitable for various welding projects and environments.
Minimal Spatter Production: By producing minimal spatter during the welding process, these rods reduce post-weld cleanup time, increasing efficiency and delivering cleaner results.
Reliable Performance: Whether used in fabrication shops or remote job sites, E6011 welding rods consistently deliver reliable performance, making them indispensable tools for welders seeking superior outcomes.
-
Welding Electrodes E6011 is a rutile- cellulosic potassium type electrode. -
Cellulose type vertical down special electrode GB/T 5117 E4311 AWS A5.1 E6011 ISO 2560-B-E4311 A -
GB/T 5117 E4311 AWS A5.1 E6011 ISO 2560-B-E4311 A -
Best Arc Welding Rods Cellulose Type 6011 Steel Welding Electrode GB/T 5117 E4311, AWS A5.1 E6011 -
Welding Electrodes E6011 is a rutile- cellulosic potassium type electrode.
What Is E6011 Welding Rod Used For
General Purpose Welding: E6011 electrodes are versatile and can be used for welding mild steel, galvanized steel, and other common metals found in general fabrication work.
Maintenance and Repair: They are often employed in maintenance and repair work, such as patching up steel structures, repairing agricultural equipment, or fixing machinery.
Pipeline Welding: E6011 rods are suitable for welding pipelines, particularly those requiring deep penetration and strong welds.
Construction: They are used in construction projects for tasks such as welding steel beams, columns, and other structural components.
Shipbuilding: E6011 rods are also utilized in shipbuilding applications, where they can weld various steel components on ships and marine structures.
Field Welding: Their ability to perform well in different positions and on both AC and DC currents makes them suitable for field welding, including outdoor and remote welding projects.
What Is the Difference Between 6010 and 6011 Welding Rod
Penetration and Current Type:
E6010 welding rods are designed for use with DC (Direct Current) welding machines and are known for their deep penetration capabilities. They create strong, penetrating welds, making them suitable for welding thick materials and for root passes in pipeline welding.
E6011 welding rods, on the other hand, can be used with both AC (Alternating Current) and DC welding machines. While they also offer good penetration, it tends to be slightly less aggressive compared to E6010 rods. They are versatile and suitable for a wide range of applications, including general-purpose welding and repair work.
Coating Composition:
E6010 rods typically have a cellulose-based coating, which provides the deep arc penetration required for welding thicker materials and ensures a strong weld bead.
E6011 rods have a similar coating but may contain additives like iron powder, which enhances arc stability and promotes easier ignition, particularly when welding on AC.
Electrode Polarity:
E6010 rods are designed to be used with DC polarity, meaning the electrode is connected to the positive terminal of the welding machine.
E6011 rods can be used with both AC and DC polarities, offering flexibility in different welding environments and with various power sources.
