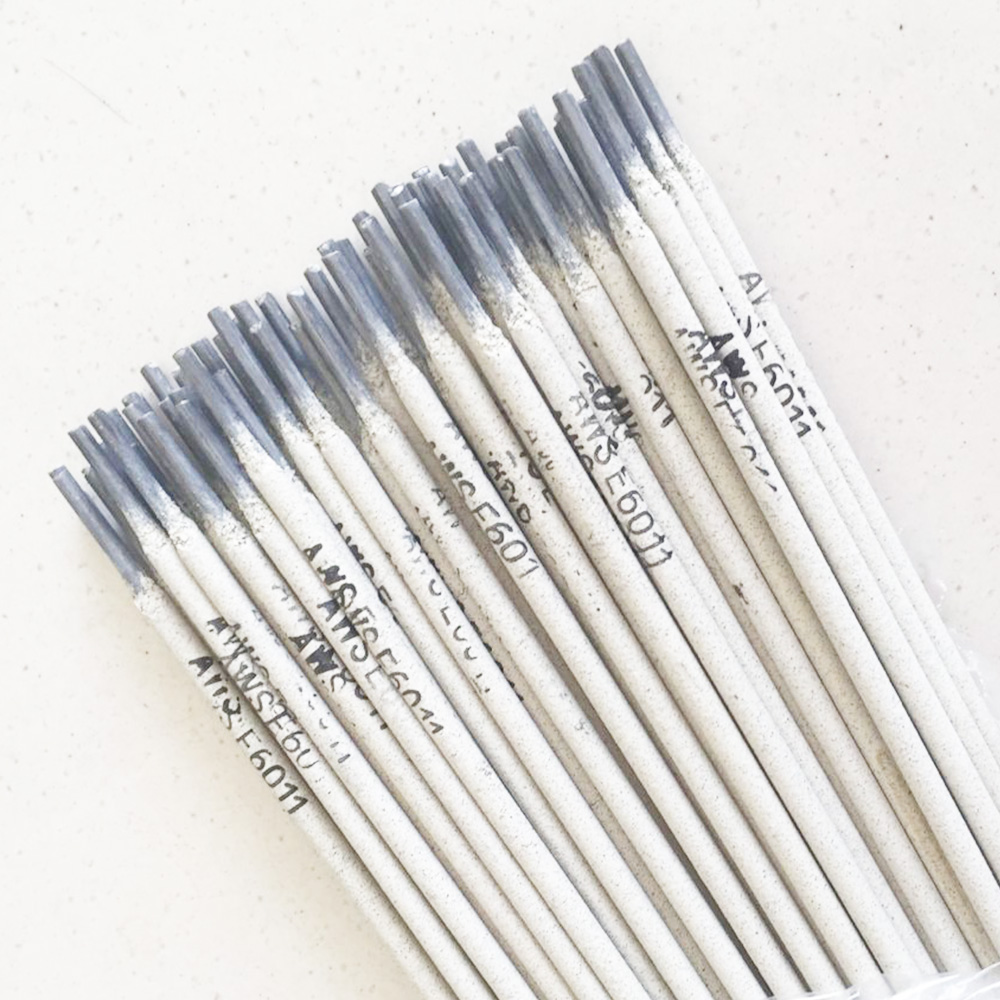

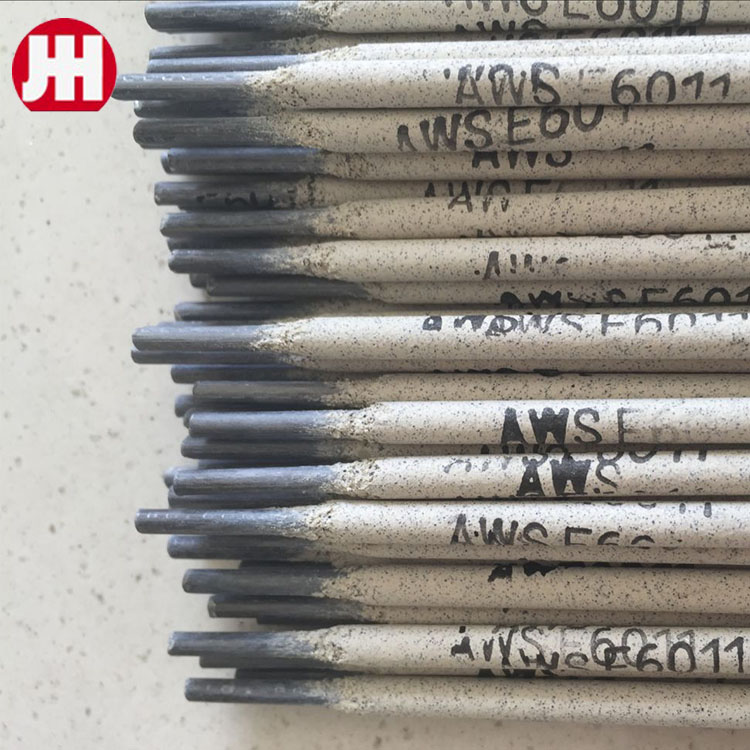

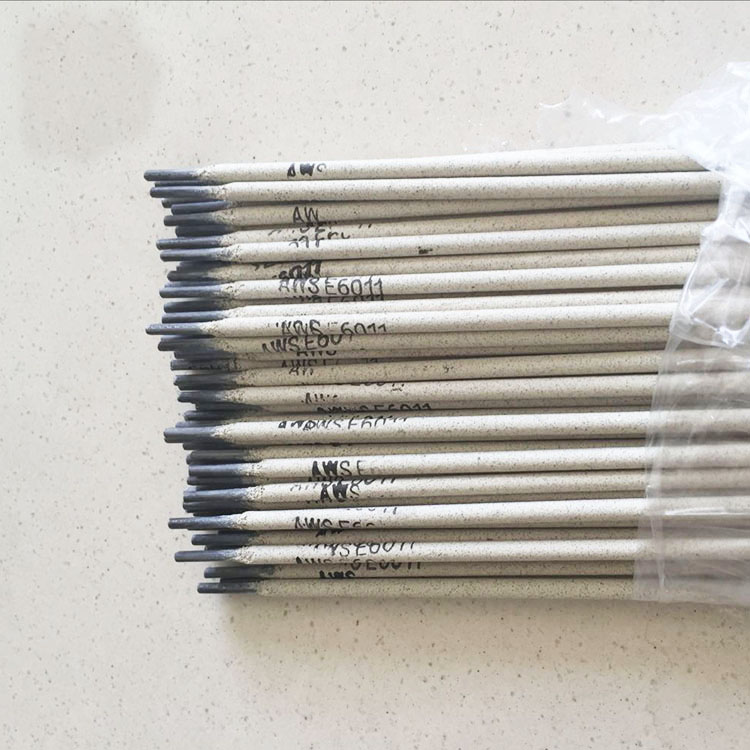

E6011 Electrode for AC Welding

Best Arc Welding Rods Cellulose Type 6011 Steel Welding ElectrodeGB/T 5117 E4311, AWS A5.1 E6011Welding rods E6011 cellulose type vertical downward special electrode welding electrode E6011 is a cellulose potassium type coating vertical down special acid electrode. Both AC and DC can be used and can be all-position welding including vertical down welding.

Features

Easy to use

All position welding, all purpose rod for deep penetration and fast freezing on dirty, rusty and painted materials

Smooth arc wetting and spread with good spatter providing fast deposition and flatter, contour fillets offering faster travel speeds

Minimal surface preparation required.

Excellent for galvanized steel and rusty/oily steel in maintenance or repair applications.

Dependable and ideal for AC operation, can be welded DC+ too.

When it is used for downward welding, the molten iron and slag do not drip and have a big arc blow force and penetration. When it is used for underlying welding, can reach one side welding double molding and have a high welding efficiency.

1. In generally, don’t need to re-dry the electrode before welding. When it be affected with damp, should be re-dry it at 70℃-90℃ for 1 hour.
2. The rust, oil, water and other impurities of the weld area must be removed before welding.

WELDING POSITIONS:

PA, PB, PC, PD, PE, PF

X-ray flaw detection: Ⅱ level

We mainly produce and deal with the products as follows:

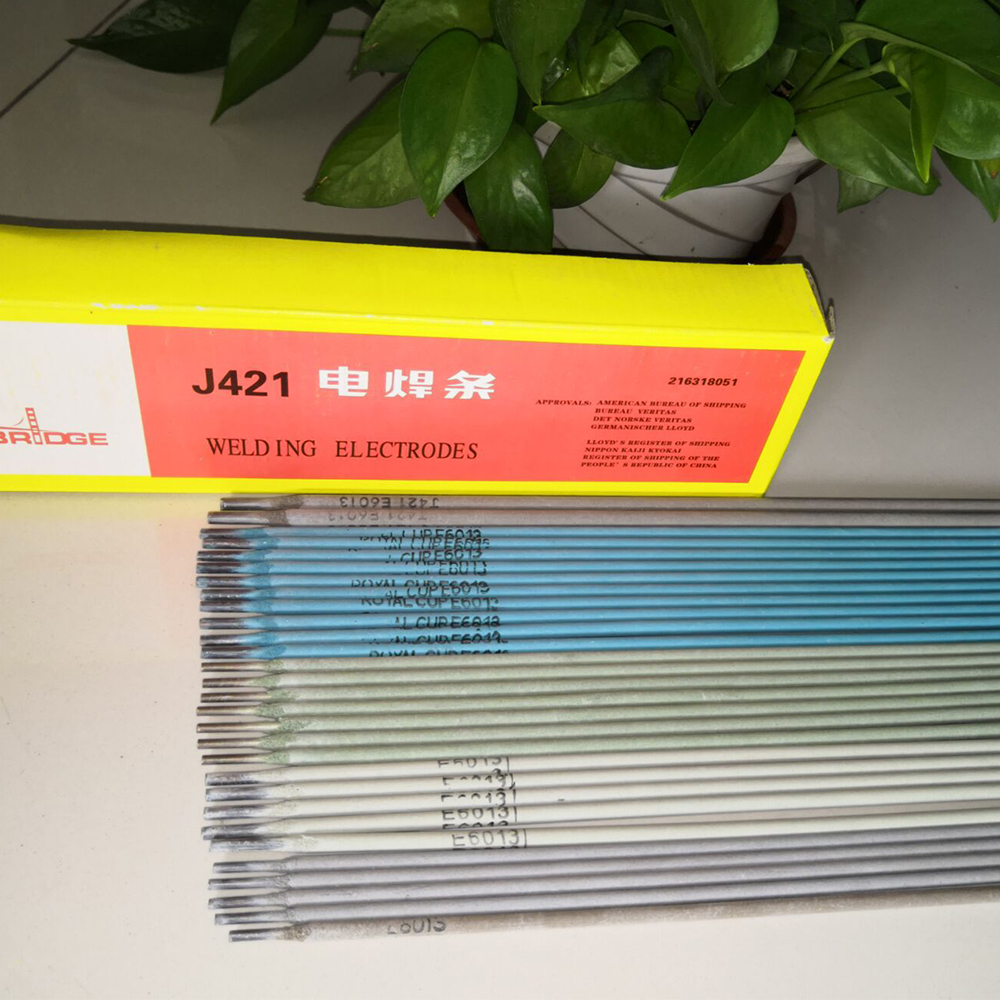

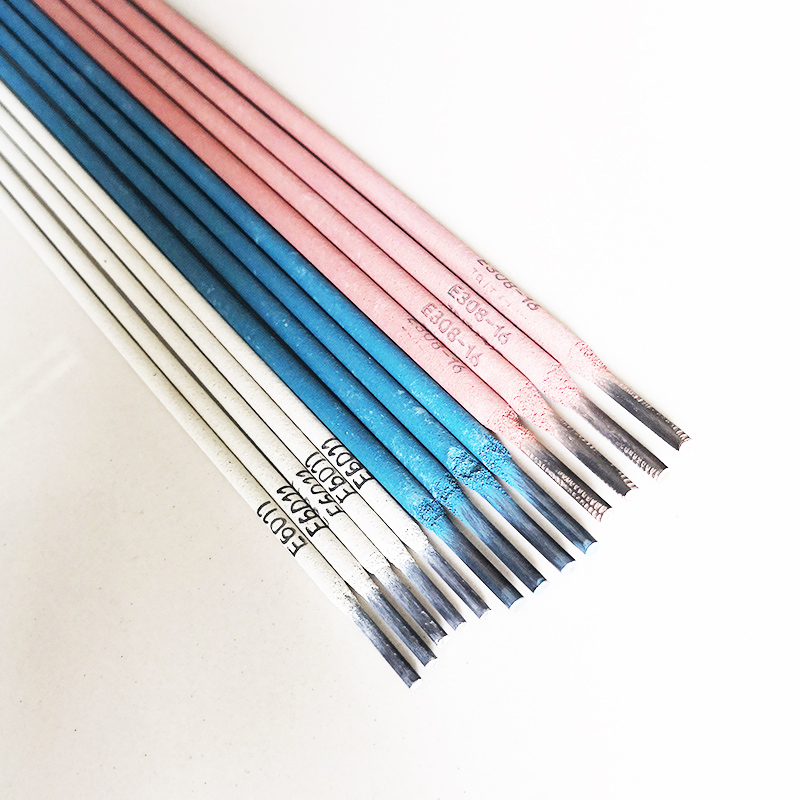

1.  Carbon Steel Welding Electrode

AWS E6013, E7018, E7016, E6010, E6011, Stainless Steel Electrode, Cast Iron Electrode. We also can supply aluminum welding rod, Tig rods, etc. Customized package available.

2.  CO2 Gas Shielded Welding Wire

AWS ER70S-6 0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.6mm. 5kg spool, 15kg spool, 20kg spool available.

Submerged Arc Welding Wire (EL-8/12, EM-12, EH-14).

Flux Cored Welding Wire:

Mild Steel Flux Cored Wire E71T-1C, E71T-11, E71-GS, E71T-1M. etc.

Popular Types:

E6013, E7016, E6010, E6011; E308, E308L, E309, E309L, E316, E316L.

Need a quick quotation for E6011? Chat with us on WhatsApp or email info@steeltoolschina.com.

See the full E6011 cellulose welding rods range, or browse all welding electrodes.

E6011 for AC Welding FAQ

Can E6011 be used on an AC welder?

Yes, and that is its main purpose. E6011 is designed to run on AC or DC positive, so it works on ordinary transformer welders and on engine driven sets where no DC output is available.

Why does AC capability matter on site?

Because a lot of site power is AC only, and small portables often have no rectifier. An electrode that runs on AC means the same grade can be used in the workshop and in the field without switching consumables.

What is the arc like on AC?

Stable, with little spatter, easy slag removal and excellent reignition. The potassium in the coating stabilises the arc through each current reversal, which is what prevents the arc from extinguishing on AC.

Which positions can it be welded in on AC?

All positions from PA to PF, with vertical-down as the specialty. Running on AC does not restrict the position range, though current settings are usually adjusted slightly compared with DC positive.

How is it packed?

2.0 and 2.5mm pack 2.5kg per box, 20kg per carton of eight boxes. 3.2 and 4.0mm pack 5kg per box, 20kg per carton of four boxes. Net 20.00kg, gross 20.40kg per carton, with OEM packaging available.

Specification & Package:

2.0mm (5/64”) x 300mm,   2.5kgs/box, 20kg(8boxes) per carton.

2.5mm (3/32”) x 300/350mm;   2.5kgs/box, 20kg(8boxes) per carton.

3.2mm (1/8”) x 350mm;        5kgs/box, 20kg(4boxes) per carton.

4.0mm (5/32”) x 400mm;       5kgs/box, 20kg(4boxes) per carton.

5.0mm x 450mm; other size please contact our service.

OEM/ODM Package Available:

NW: 20.00KG,GW: 20.40KG,

we also can do different kgs package, plastic bag package,

we can print the package as your requests, we have professional designer to make the package design with your brand & LOGO.

Welcome to visit us for a friendly and long term cooperation, please tell us your time schedule, we will arrange for you. we will also join the relate exhibitions, we can meet each other on the exhibition. Friendship first, and business is professional, you can trust us forever.

1.Is the Supplier Reliable?

We produce this products more than 30 years, we have advertise on Alibaba, Made-in-China, after you place the order, whenever you want to see the production, we can send you video or picture to check. Our export team also have more than 15 years experience, we can solve all the problem you may meet in business. Welcome to visit us.

2.Is the Quality Stable?

We do test randomly in production, and test shipment before ex works. We have professional QC workers and high level test equipment, to assure each shipment in good quality.

3.Is the Payment Safe?

We choose one of the largest bank in China, to assure your payment will arrive in safe condition, and all of the benefit company must send them the shipping document copy to bank for record.

4.Shipment Delivery?

Normally we can arrange shipment in 15 days, if customize the package, shipment can be arranged in one month, please negotiate with our customer service, we will tell you a firm date after check our production and your order quantity.
