Production Description
J506 (J48.56)
GB/T 5117 E5016
AWS A5.1 E7016
ISO 2560-B-E 49 16 A
E7018 is a low hydrogen type electrode for the welding of 490N/mm² grade high tensile steel. The welding can be done with high deposition rate, good X-ray soundness and mechanical properties. It is especially suitable for nuclear power stations, petroleum chemical plants, and heavy steel plates.Proper base metals such as:structural steel, steel casting,thin plate,steel strip,carb on steel tube.It is especially suitable for nuclear power stations, petroleum chemical plants, and heavy steel plates.Proper base metals such as:structural steel, steel casting,thin plate,steel strip,carb on steel tube, etc..

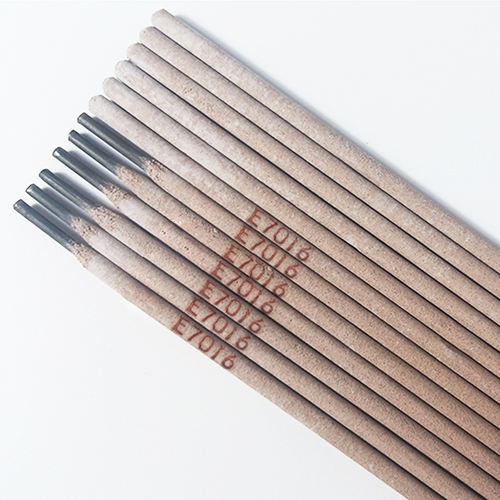

The full name of 7016 electrode is E7016 electrode, that is, low hydrogen potassium carbon steel electrode, which is suitable for welding medium carbon steel and important low alloy steel. This kind of electrode should be dried before use, and the weldment should be processed. It is necessary to clean up the oil stains, rust stains and moisture on the surface. It is best to use the two methods of short arc welding and narrow pass welding.
Both AC and DC can be used and can be all-position welding.

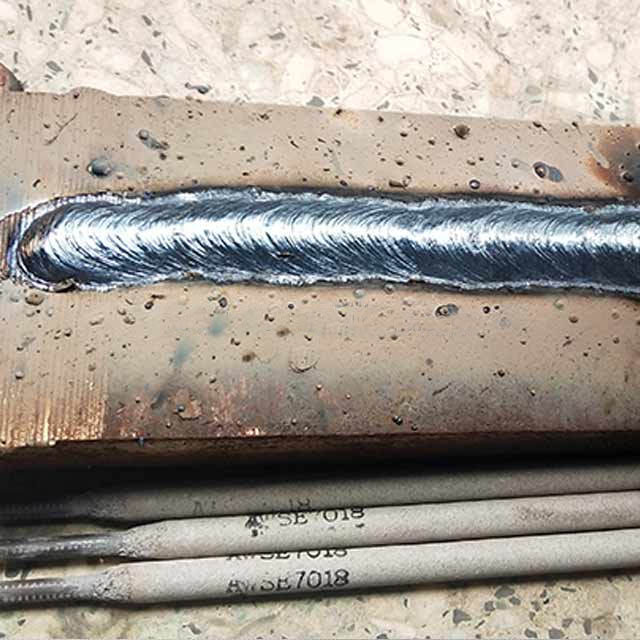

It can reach to excellent welding performance, stable arc, little spatter, easy slag removal and good weld appearance.
Weld metal has excellent mechanical properties and crack resistance
WELDING POSITIONS: PA,PB,PC,PD,PE,PF
With more than 20 years production experience, we have professional production team, skilled workers, support OEM / ODM and could make packaging according to your design. As professional welding electrode manufacturer, we have strong technical power, complete product testing equipment so that we can keep stable product quality. Our products include kinds of welding electrodes, such as low carbon steel, Iow alIoy steel, heat-resistant steels, low temperature steel, stainless steel, cast iron, hard surfacing welding electrodes and Stainless Steel welding rods.
Please contact us freely if any questions.
Chemical Composition:
C |
Mn |
Si |
S |
P |
≤0.12 |
≤1.6 |
≤0.75 |
≤0.035 |
≤0.040 |
Mechanical Property:
AWS A5.1 |
Tensile Strength Rm |
Yield Strength Rel |
Elongation A |
Akv |
KV2 |
MPa |
MPa |
% |
J |
0 degree/J |
|
E7016 |
≥490 |
≥400 |
≥22 |
≥27 |
-30 |
Specification & Package
2.0mm (5/64”) x 300mm, 2.5kgs/box, 20kg(8boxes) per carton.
2.5mm (3/32”) x 300/350mm; 2.5kgs/box, 20kg(8boxes) per carton.
3.2mm (1/8”) x 350mm; 5kgs/box, 20kg(4boxes) per carton.
4.0mm (5/32”) x 400mm; 5kgs/box, 20kg(4boxes) per carton.
5.0mm x 450mm; other size please contact our service.
OEM/ODM Package Available:
NW: 20.00KG,GW: 20.40KG,
we also can do different kgs package, plastic bag package,
we can print the package as your requests, we have professional designer to make the package design with your brand & LOGO.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
