E7016 Manufacturer Check

J506

GB/T 5117 E5016

AWS A5.1 E7016

ISO 2560-B-E 49 16 A

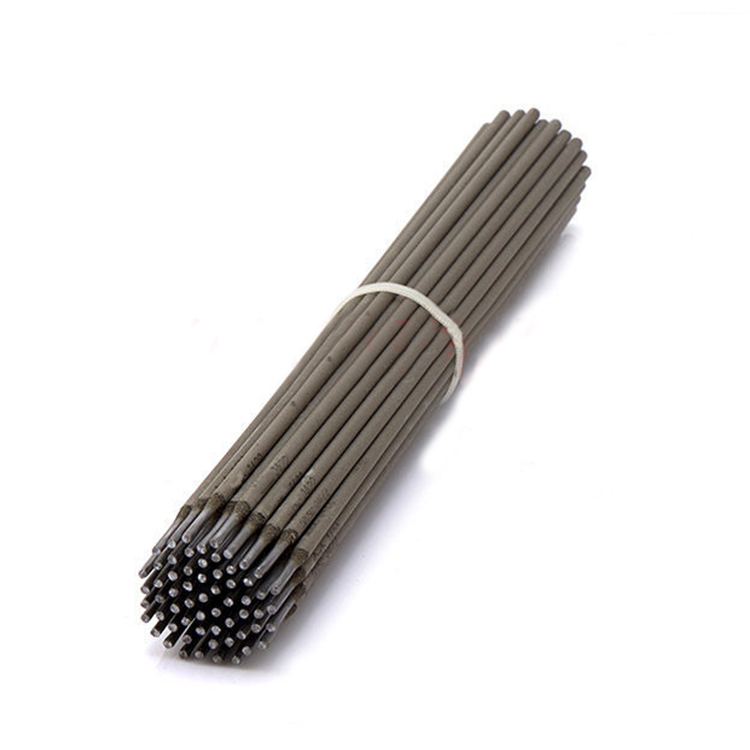

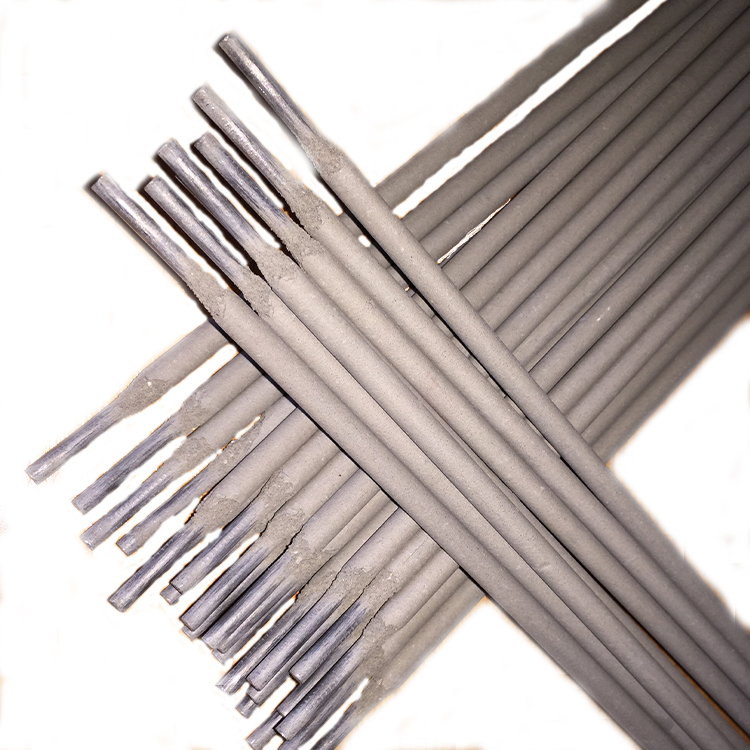

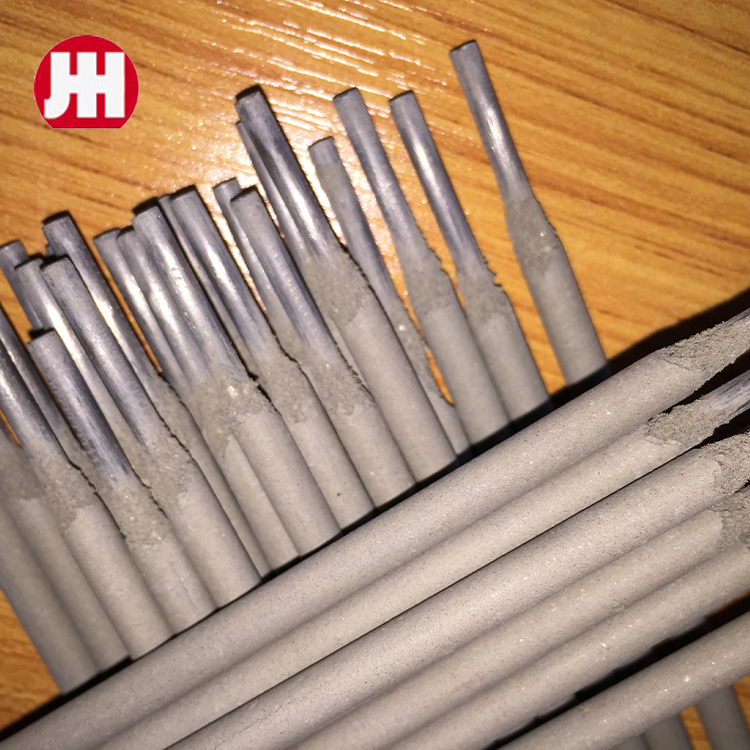

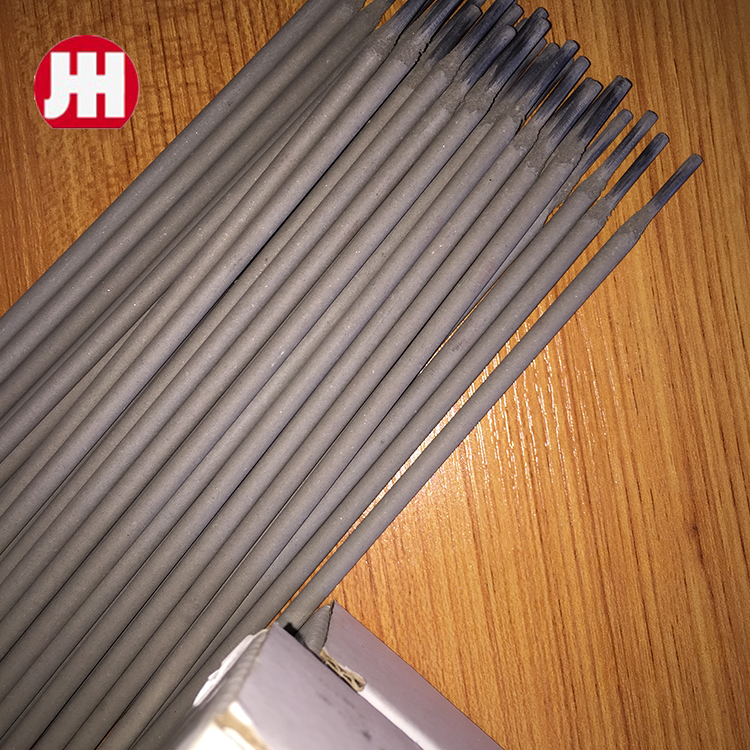

E7016 is a low hydrogen type electrode for the welding of 490N/mm² grade high tensile steel. The welding can be done with high deposition rate, good X-ray soundness and mechanical properties. It is especially suitable for nuclear power stations, petroleum chemical plants, and heavy steel plates.Proper base metals such as:structural steel, steel casting,thin plate,steel strip,carb on steel tube.It is especially suitable for nuclear power stations, petroleum chemical plants, and heavy steel plates.Proper base metals such as:structural steel, steel casting,thin plate,steel strip,carb on steel tube, etc..

Both AC and DC can be used and can be all-position welding.

It can reach to excellent welding performance, stable arc, little spatter, easy slag removal and good weld appearance.

Weld metal has excellent mechanical properties and crack resistance

WELDING POSITIONS: PA,PB,PC,PD,PE,PF

With more than 20 years production experience, we have professional production team, skilled workers, support OEM / ODM and could make packaging according to your design. As professional welding electrode manufacturer, we have strong technical power, complete product testing equipment so that we can keep stable product quality. Our products include kinds of welding electrodes, such as low carbon steel, Iow alIoy steel, heat-resistant steels, low temperature steel, stainless steel, cast iron, hard surfacing welding electrodes and Stainless Steel welding rods.

Please contact us freely if any questions.

We mainly produce and deal with the products as follows:

1.  Carbon Steel Welding Electrode

AWS E6013, E7018, E7016, E6010, E6011, Stainless Steel Electrode, Cast Iron Electrode. We

2.  CO2 Gas Shielded Welding Wire

AWS ER70S-6 0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.6mm.

 Submerged Arc Welding Wire (EL-8/12, EM-12, EH-14).

 Flux Cored Welding Wire:

Mild Steel Flux Cored Wire E71T-1, E71T-11.

Need a quick quotation for E7016? Chat with us on WhatsApp or email info@steeltoolschina.com.

Compare our complete E7016 low hydrogen electrodes line, or view all welding electrodes.

E7016 Welding Electrode Manufacturer FAQ

Which electrode grades does the factory produce?

Carbon steel electrodes including E6013, E7018, E7016, E6010 and E6011, plus stainless steel electrodes and cast iron electrodes. Gas shielded welding wire is produced alongside the covered electrode lines.

What is E7016 used for?

Welding 490 N/mm2 grade high tensile steel, heavy steel plate, structural steel and castings. It is also used in nuclear power and petrochemical plants where the joint has to pass radiographic inspection.

What deposition rate does it offer?

High deposition, which shortens welding time on heavy sections. The coating carries iron powder, so a given current lays down more metal per pass, reducing both labour cost and the number of inter-pass cleaning steps.

What weld quality can be expected?

X-ray soundness with mechanical properties matching the 490 N/mm2 grade. That combination of radiographic quality and crack resistance is what makes the grade suitable for pressure, process and power plant work.

What sizes and packing are supplied?

2.0mm at 300mm and 2.5mm at 300mm or 350mm, 2.5kg per box at 20kg per carton of eight boxes. 3.2mm at 350mm and 4.0mm at 400mm, 5kg per box at 20kg per carton of four boxes. 5.0mm at 450mm on request.

2.0mm (5/64”) x 300mm,   2.5kgs/box, 20kg(8boxes) per carton.

2.5mm (3/32”) x 300/350mm;   2.5kgs/box, 20kg(8boxes) per carton.

3.2mm (1/8”) x 350mm;        5kgs/box, 20kg(4boxes) per carton.

4.0mm (5/32”) x 400mm;       5kgs/box, 20kg(4boxes) per carton.

5.0mm x 450mm; other size please contact our service.

OEM/ODM Package Available:

NW: 20.00KG,GW: 20.40KG,

we also can do different kgs package, plastic bag package,

we can print the package as your requests, we have professional designer to make the package design with your brand & LOGO.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Welcome to visit us for a friendly and long term cooperation, please tell us your time schedule, we will arrange for you. we will also join the relate exhibitions, we can meet each other on the exhibition. Friendship first, and business is professional, you can trust us forever.

1.Is the Supplier Reliable?

We produce this products more than 30 years, we have advertise on Alibaba, Made-in-China, after you place the order, whenever you want to see the production, we can send you video or picture to check. Our export team also have more than 15 years experience, we can solve all the problem you may meet in business. Welcome to visit us.

2.Is the Quality Stable?

We do test randomly in production, and test shipment before ex works. We have professional QC workers and high level test equipment, to assure each shipment in good quality.

3.Is the Payment Safe?

We choose one of the largest bank in China, to assure your payment will arrive in safe condition, and all of the benefit company must send them the shipping document copy to bank for record.

4.Shipment Delivery?

Normally we can arrange shipment in 15 days, if customize the package, shipment can be arranged in one month, please negotiate with our customer service, we will tell you a firm date after check our production and your order quantity.
