E71T-11 Self Shielded Wire

AWS A5.20 E71T-11

AWS E71T- 11 is a gasless self-shielding carbon steel flux cored wire for all-positions and multi pass welding with smooth stable arc, low spatter, easy slag removal and excellent appearance. It operates on DCEN，and welds carton steel, galvanized sheet, lap welding and light structural element.

No gas required with this product

AVAILABLE DIAMETER

Popular size: 0.6mm,0.8mm,0.9mm,1.0mm,1.2mm,1.6mm

PACKAGE

For D100 spool:0.45kg/spool,0.9kg/spool,1kg/spool,20spool/carton, 56cartons/Pallet

For D200 spool: 4.5kg/spool,5kg/spool, 200cartons/Pallet

For D270 spool:15kg/spool,72cartons/Pallet

Approvals:

CE,TUV,ISO9001

Need a quick quotation for welding wire? Chat with us on WhatsApp or email info@steeltoolschina.com.

Browse the flux cored welding wire collection.

E71T-11 Self Shielded Wire FAQ

What is E71T-11 flux cored wire?

It is a self shielded flux cored wire that carries all its arc protection in the core, so no external gas is needed. It welds carbon steel in all positions at the 490 MPa level.

Does E71T-11 need shielding gas?

No. That is the whole point of the grade. It can be run outdoors in wind and on site where a gas cylinder is impractical, which makes it the standard choice for structural steel erection and repair work.

What thickness can E71T-11 weld?

Generally up to around 12mm in multiple passes, depending on the procedure. Above that, a gas shielded wire or a covered electrode is usually more economical because the deposition rate of small self shielded wire is limited.

Which polarity does self shielded wire use?

DC electrode negative for most E71T-11 grades, which is the opposite of gas shielded flux core. Connecting it the other way round gives a violent arc and poor penetration, and is a common mistake on site.

What sizes and packing are supplied?

0.8mm to 1.6mm on 5kg, 15kg or 20kg spools. Because there is no gas to dry the weld, the wire itself must be kept sealed and dry, and damp spools should not be used.

0.8mm,   5kgs/box, 15kg per box. 20kg per box,

0.9mm,   5kgs/box, 15kg per box. 20kg per box,

1.0mm,   5kgs/box, 15kg per box. 20kg per box,

1.2mm,   5kgs/box, 15kg per box. 20kg per box,

1.6mm,   5kgs/box, 15kg per box. 20kg per box,

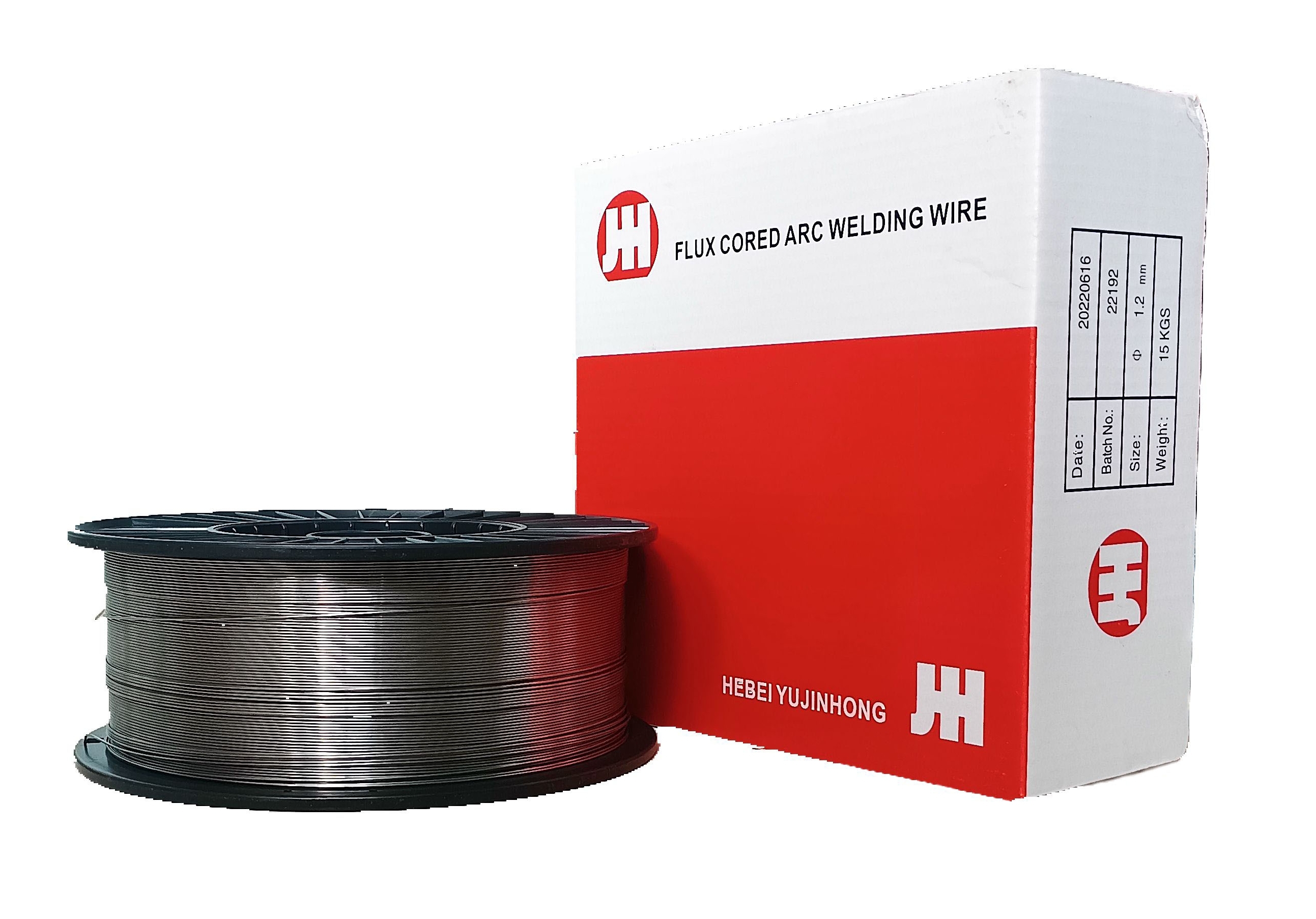

Color print box is available.

OEM/ODM Package Available:

we also can do different kgs package, different brand print.

we can print the package as your requests, we have professional designer to make the package design with your brand & LOGO.

Welcome to visit us for a friendly and long term cooperation, please tell us your time schedule, we will arrange for you. we will also join the relate exhibitions, we can meet each other on the exhibition. Friendship first, and business is professional, you can trust us forever.

1.Is the Supplier Reliable?

We produce this products more than 30 years, we have advertise on Alibaba, Made-in-China, after you place the order, whenever you want to see the production, we can send you video or picture to check. Our export team also have more than 15 years experience, we can solve all the problem you may meet in business. Welcome to visit us.

2.Is the Quality Stable?

We do test randomly in production, and test shipment before ex works. We have professional QC workers and high level test equipment, to assure each shipment in good quality.

3.Is the Payment Safe?

We choose one of the largest bank in China, to assure your payment will arrive in safe condition, and all of the benefit company must send them the shipping document copy to bank for record.

4.Shipment Delivery?

Normally we can arrange shipment in 15 days, if customize the package, shipment can be arranged in one month, please negotiate with our customer service, we will tell you a firm date after check our production and your order quantity.
