Production Description
Specification conformance
AWS A5.20 E71T-GS

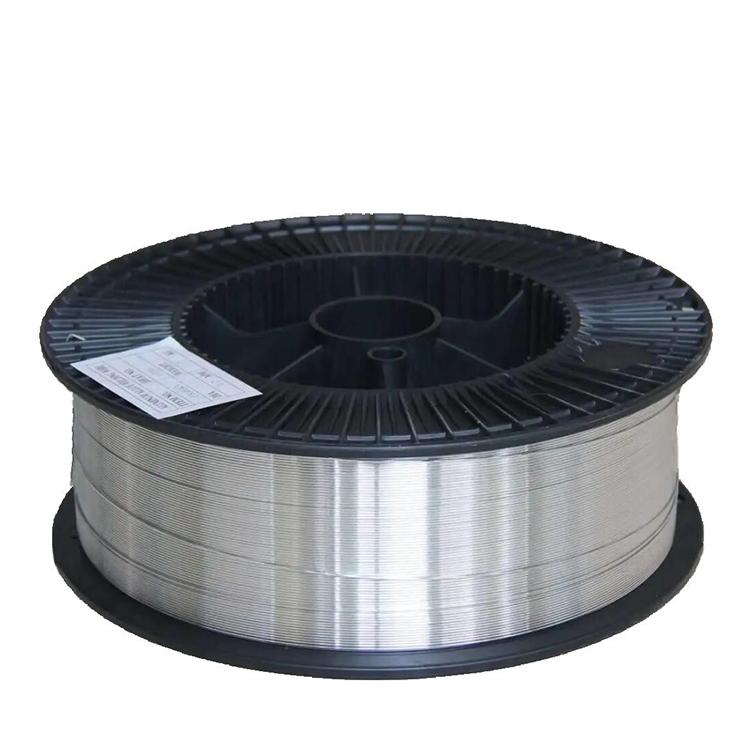

Description
AWS E71T- GS is a gasless self-shielding carbon steel flux cored wire for all-positions and multilayer welding with smooth stable arc, low spatter, easy slag removal and excellent appearance. It operates on DCEN,and welds carton steel, galvanized sheet, lap welding and light structural element.
Shielding gas
No gas required with this product

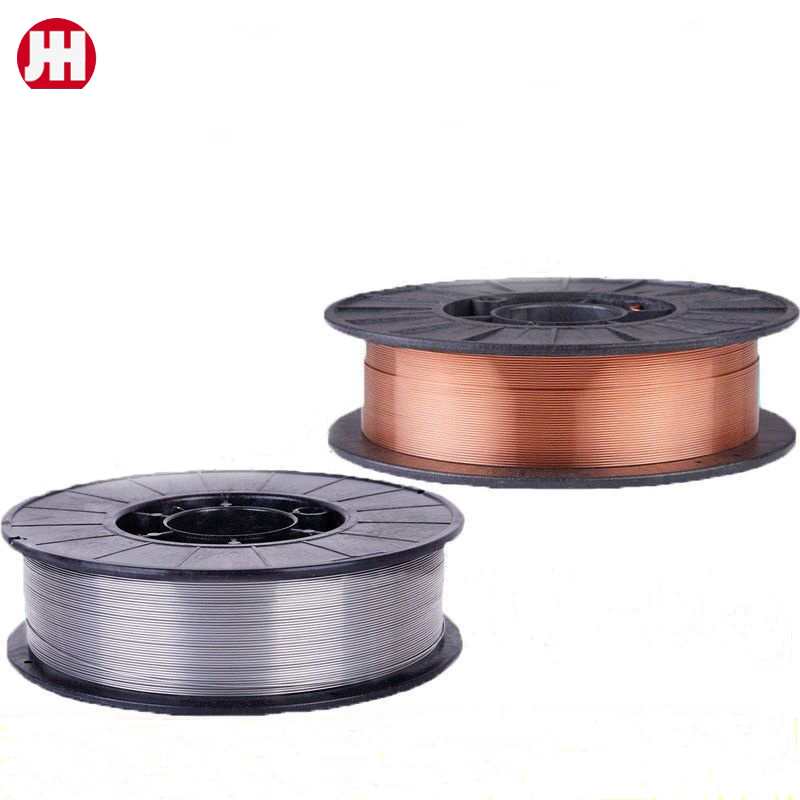

AVAILABLE DIAMETER
Popular size: 0.8MM(0.030”)/ 0.9MM(0.035”)
1.0MM,1.2MM etc.

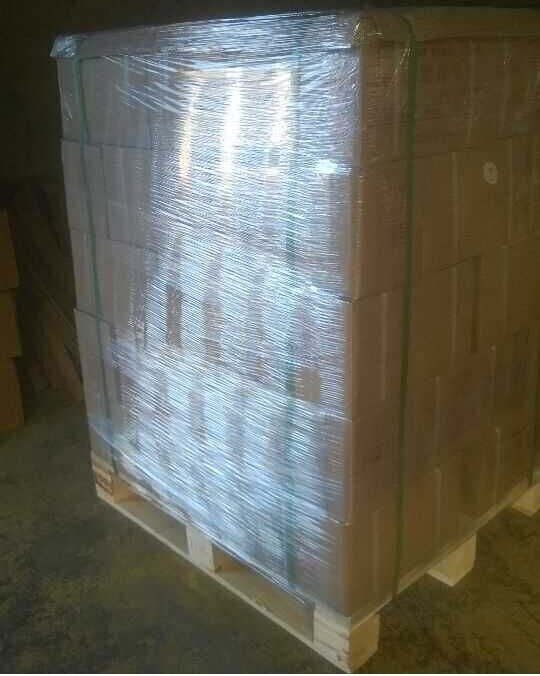

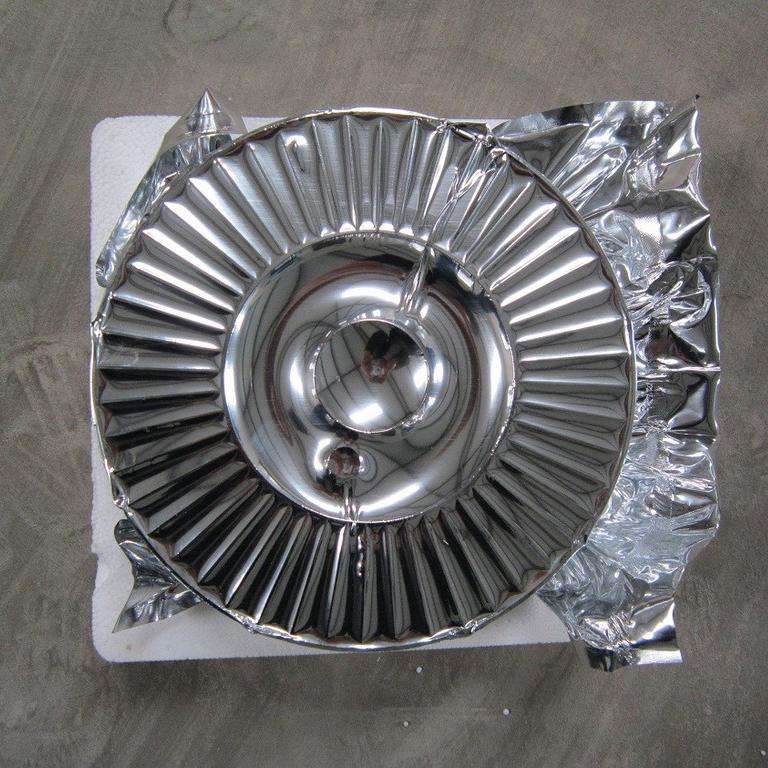

PACKAGE

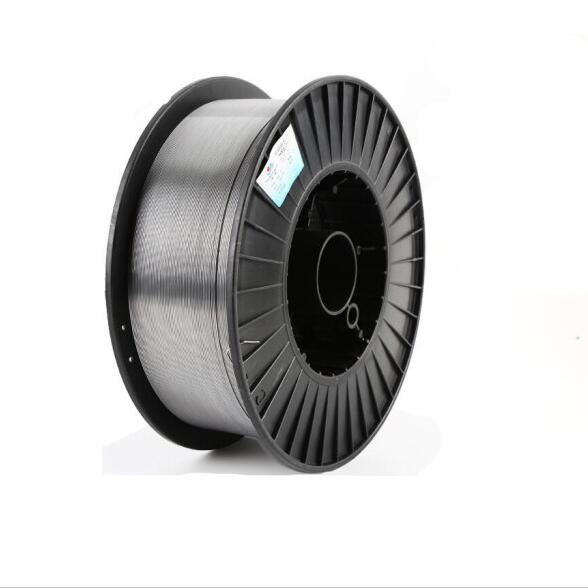

For D100 spool:0.45kg/spool,0.9kg/spool,1kg/spool,20spool/carton, 56cartons/Pallet
For D200 spool: 4.5kg/spool,5kg/spool, 200cartons/Pallet
Will do OEM package according to customer requirement
Approvals:
CE,TUV,ISO9001
Chemical Composition of deposited metal (%)
Item |
C |
Mn |
Si |
P |
S |
Al |
Cr |
Ni |
Mo |
V |
Standard |
≤0.30 |
≤1.75 |
≤0.60 |
≤0.03 |
≤0.03 |
≤1.8 |
≤0.20 |
≤0.50 |
≤0.30 |
≤0.08 |
Mechanical Properties Of Deposited Metal
Item |
Yield Strength ReL (MPa) |
Tensile Strength Rm (MPa) |
Elongation A5 (%) |
Standard |
≥390 |
≥490 |
≥20 |

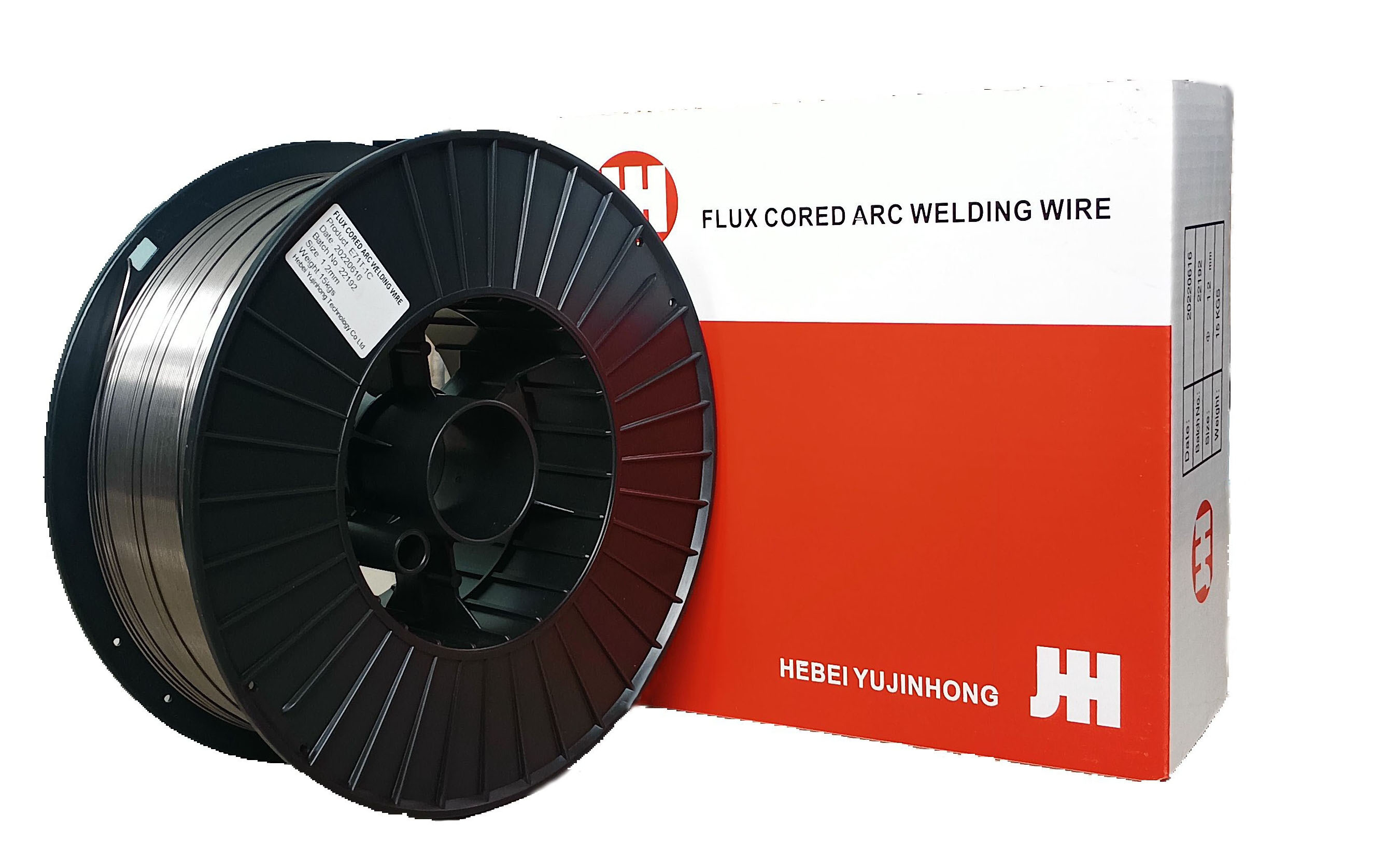

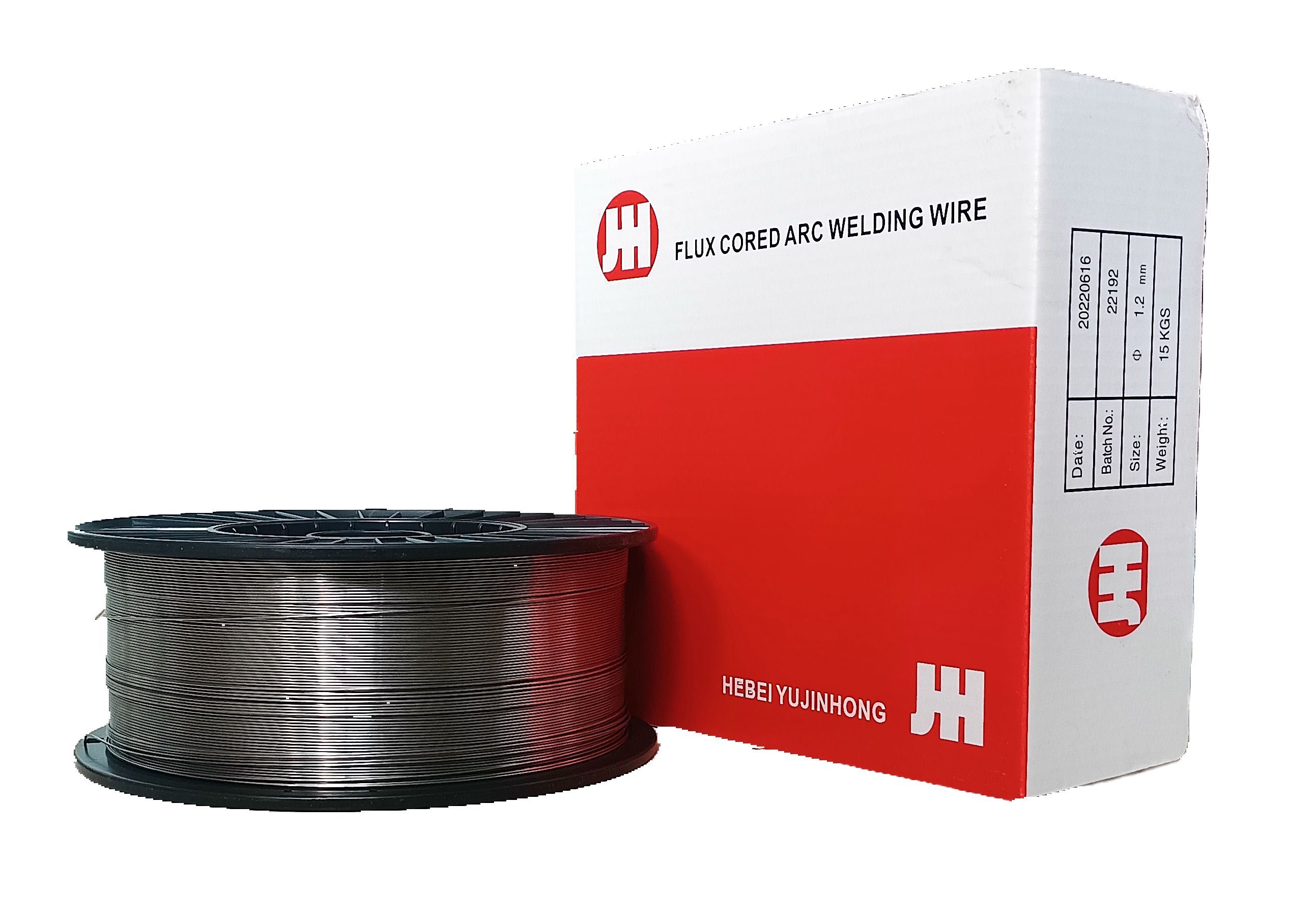

Specification & Package
0.8mm, 5kgs/box, 15kg per box. 20kg per box,
0.9mm, 5kgs/box, 15kg per box. 20kg per box,
1.0mm, 5kgs/box, 15kg per box. 20kg per box,
1.2mm, 5kgs/box, 15kg per box. 20kg per box,
1.6mm, 5kgs/box, 15kg per box. 20kg per box,

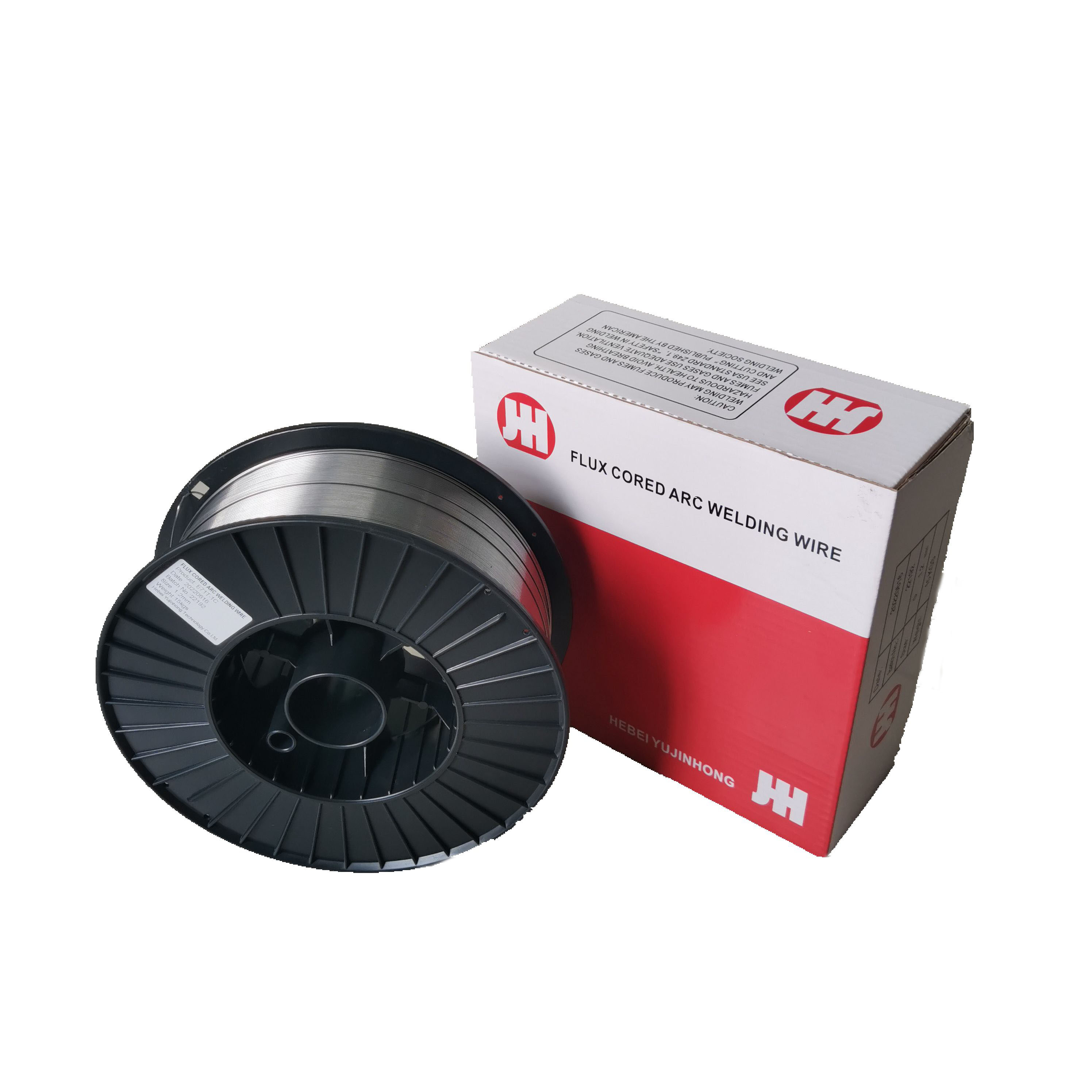

Color print box is available.
OEM/ODM Package Available:
we also can do different kgs package, different brand print.
we can print the package as your requests, we have professional designer to make the package design with your brand & LOGO.
Product Video
Visit & Exhibition
Welcome to visit us for a friendly and long term cooperation, please tell us your time schedule, we will arrange for you. we will also join the relate exhibitions, we can meet each other on the exhibition. Friendship first, and business is professional, you can trust us forever.
Do you have the following trouble when order the products?
1.Is the Supplier Reliable?
We produce this products more than 30 years, we have advertise on Alibaba, Made-in-China, after you place the order, whenever you want to see the production, we can send you video or picture to check. Our export team also have more than 15 years experience, we can solve all the problem you may meet in business. Welcome to visit us.
2.Is the Quality Stable?
We do test randomly in production, and test shipment before ex works. We have professional QC workers and high level test equipment, to assure each shipment in good quality.
3.Is the Payment Safe?
We choose one of the largest bank in China, to assure your payment will arrive in safe condition, and all of the benefit company must send them the shipping document copy to bank for record.

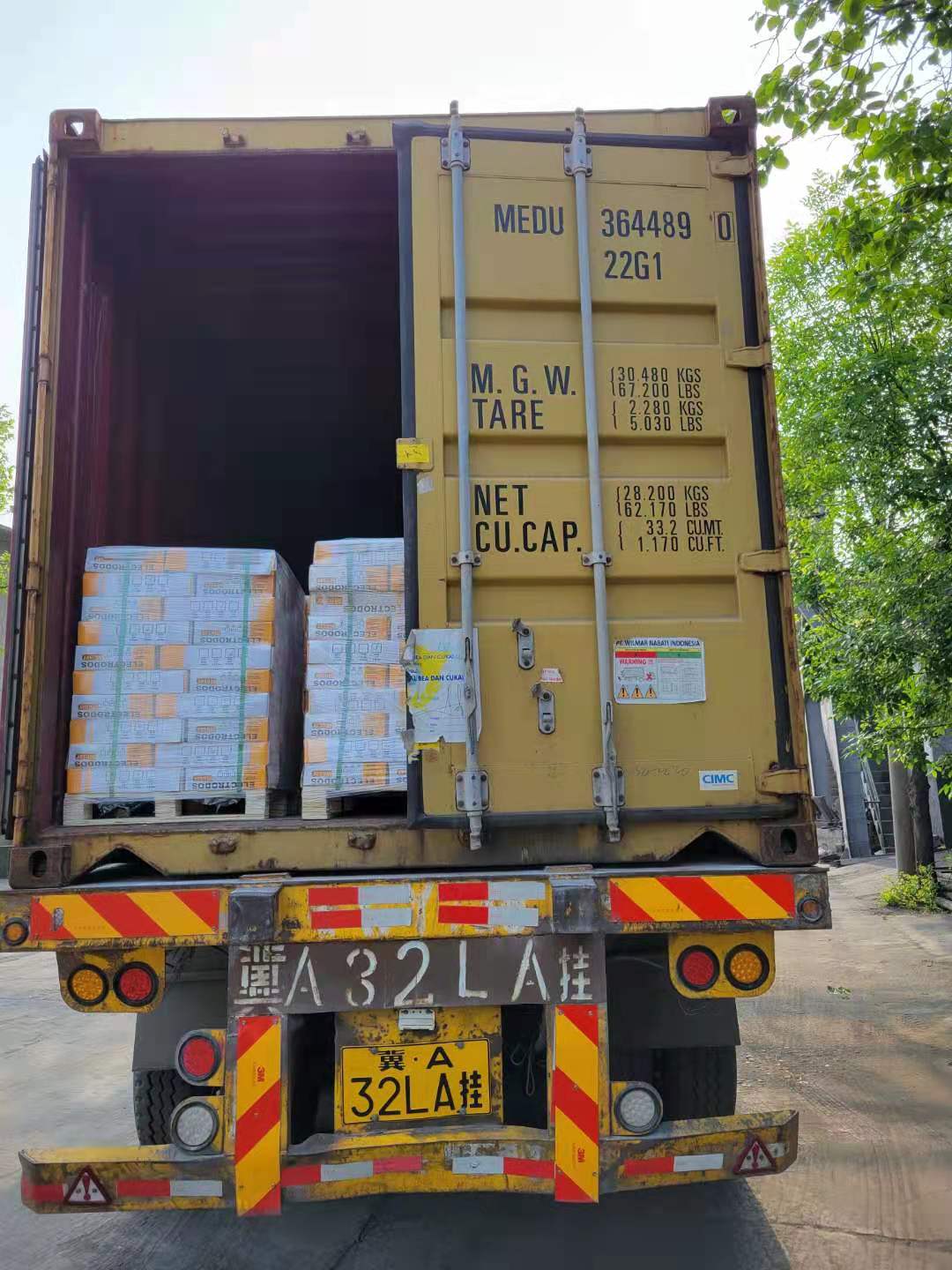

4.Shipment Delivery?
Normally we can arrange shipment in 15 days, if customize the package, shipment can be arranged in one month, please negotiate with our customer service, we will tell you a firm date after check our production and your order quantity.
