ER70S-6 Co2 Solid Mig Welding Wire

Alambre wire The Welding Wire ER70S-6 is 500MPa level carbon steel wire. It take CO2 or 80%Ar + 20%CO2 gas shielded arc welding. The welding spatter is small, and it has beautiful appearance, high cladding efficiency and small weld metal porosity sensibility. The welding technology of all positions is good.

PDF DOWNLOAD
Product Detail
Tag

Production Description

Alambre wire

The Welding Wire ER70S-6 is 500MPa level carbon steel wire. It take CO2 or 80%Ar + 20%CO2 gas shielded arc welding. The welding

spatter is small, and it has beautiful appearance, high cladding efficiency and small weld metal porosity sensibility. The welding

technology of all positions is good.



Welding Positions:

PA、PB、PC、PD、PE、PF



    Characteristics:

  1. Low welding cost.
  2. High production efficiency and low power consumption.
  3. It is easy to operate and can perform all-position welding.
  4. The hydrogen content of the weld is very low, the nitrogen content is less, and the crack resistance is good.



  1. Small deformation after welding.
  2. Wide application range, suitable for welding thin, medium and thick plates.



Carbon steel gas shielded welding wire. Using advanced production technology, strictly control every detail of raw material supply, processing and production, finished product inspection, and after-sales service. During welding, the welding wire has fast melting speed, stable arc, small welding spatter, beautiful weld shape, strong oxidation and corrosion resistance, low sensitivity of deposited metal pores, and good welding process in all positions. The shielding gas can be CO2 or Ar+ CO2. And obtain extraordinary process performance and physical performance.



The main purpose of copper plating on welding wire is anti-corrosion, because the main component of welding wire is steel, and the bare leakage is easy to rust and corrode in the atmosphere. Copper plating on the surface can effectively prolong the shelf life. In addition, copper plating makes the surface of welding wire smoother and increases delivery Silkiness can also enhance electrical conductivity.



Welding wire is used as a filler metal or as a wire welding material for electrical conductivity. In gas welding and gas tungsten arc welding, the welding wire is used as filler metal; in submerged arc welding, electroslag welding and other MIG arc welding, the welding wire is both filler metal and conductive electrode. The surface of the welding wire is not coated with anti-oxidation flux.

C

Mn

Si

S

P

Ni

Cr

Mo

V

Cu

0.06-0.15

1.4-1.85

0.8-1.15

≤0.025

≤0.025

≤0.15

≤0.15

≤0.15

≤0.03

≤0.5



Mechanical Property:

AWS

Tensile Strength

Rm

Yield Strength

Rel/Rp0.2



A

KV2 (-30C)/J

MPa

MPa

%

0 degree/J

ER70S-6

≥500

≥420

≥22

≥27

ER70S-6 Co2 Solid Mig Welding Wire

Specification & Package

0.8mm,   5kgs/box, 15kg per box. 20kg/box

0.9mm,   5kgs/box, 15kg per box. 20kg/box

1.0mm,   5kgs/box, 15kg per box. 20kg/box

1.2mm,   5kgs/box, 15kg per box. 20kg/box

1.6mm,   5kgs/box, 15kg per box. 20kg/box

Color print box is available.

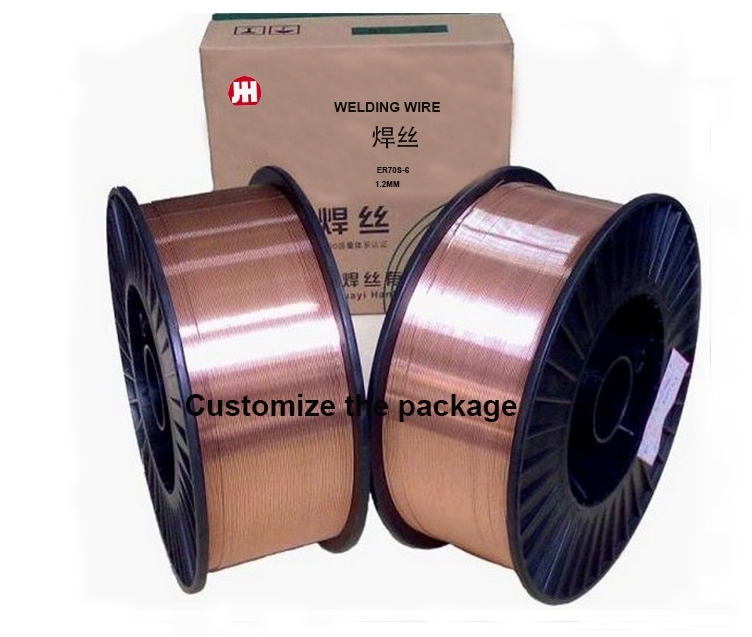

OEM/ODM Package Available:

we also can do different kgs package, different brand print.

we can print the package as your requests, we have professional designer to make the package design with your brand & LOGO.
