SG2 and SG3 MIG Wire

Alambre wire

The Welding Wire ER70S-6 is 500MPa level carbon steel wire. It take CO2 or 80%Ar + 20%CO2 gas shielded arc welding. The welding

spatter is small, and it has beautiful appearance, high cladding efficiency and small weld metal porosity sensibility. The welding

technology of all positions is good.

Welding Positions：

PA、PB、PC、PD、PE、PF

    Characteristics:

1. Low welding cost.
2. High production efficiency and low power consumption.
3. It is easy to operate and can perform all-position welding.
4. The hydrogen content of the weld is very low, the nitrogen content is less, and the crack resistance is good.

5. Small deformation after welding.
6. Wide application range, suitable for welding thin, medium and thick plates.

The role of copper plating on the surface of the welding wire (1) prevent the surface of the welding wire from rusting; (2) reduce the friction factor, reduce the wear on the contact tip, and improve the service life of the contact tip; (3) reduce the contact resistance between the contact tip and the welding wire.

Carbon steel gas shielded welding wire. Using advanced production technology, strictly control every detail of raw material supply, processing and production, finished product inspection, and after-sales service. During welding, the welding wire has fast melting speed, stable arc, small welding spatter, beautiful weld shape, strong oxidation and corrosion resistance, low sensitivity of deposited metal pores, and good welding process in all positions. The shielding gas can be CO2 or Ar+ CO2. And obtain extraordinary process performance and physical performance.

The main purpose of copper plating on welding wire is anti-corrosion, because the main component of welding wire is steel, and the bare leakage is easy to rust and corrode in the atmosphere. Copper plating on the surface can effectively prolong the shelf life. In addition, copper plating makes the surface of welding wire smoother and increases delivery Silkiness can also enhance electrical conductivity.

Welding wire is used as a filler metal or as a wire welding material for electrical conductivity. In gas welding and gas tungsten arc welding, the welding wire is used as filler metal; in submerged arc welding, electroslag welding and other MIG arc welding, the welding wire is both filler metal and conductive electrode. The surface of the welding wire is not coated with anti-oxidation flux.

Need a quick quotation for ER70S-6? Chat with us on WhatsApp or email info@steeltoolschina.com.

Compare our complete ER70S-6 MIG welding wire line, or view all copper coated welding wire.

SG2 and SG3 MIG Wire FAQ

What is SG2 wire and how does it relate to ER70S-6?

SG2 is the European designation for a copper coated solid wire for carbon steel, roughly equivalent to ER70S-6. The chemistry is close enough that either can usually be substituted, but the certificate states which standard it is tested to.

What is the difference between SG2 and SG3?

SG3 carries a higher silicon and manganese level than SG2, which gives better tolerance to mill scale and slightly better strength. SG2 is the everyday choice, and SG3 is used where surface condition is poorer.

Which standard should the certificate quote?

For export to Europe, EN ISO 14341-A G42 4 M G3Si1 is the usual reference for SG2. For North America, AWS A5.18 ER70S-6 applies. Both describe the same class of wire with slightly different test requirements.

What diameters and spools are supplied?

0.8mm, 0.9mm, 1.0mm, 1.2mm and 1.6mm, on 5kg, 15kg or 20kg spools. The 15kg spool is the most common for general fabrication, and the 20kg for heavier production welding.

Can SG2 be used for soldering?

No. SG2 is a welding wire and melts far above soldering temperatures. If a joint is genuinely soldered, a filler with a much lower melting point is needed, and mixing the two terms up leads to the wrong consumable being ordered.

0.8mm,   5kgs/box, 15kg per box. 20kg/box

0.9mm,   5kgs/box, 15kg per box. 20kg/box

1.0mm,   5kgs/box, 15kg per box. 20kg/box

1.2mm,   5kgs/box, 15kg per box. 20kg/box

1.6mm,   5kgs/box, 15kg per box. 20kg/box

Color print box is available.

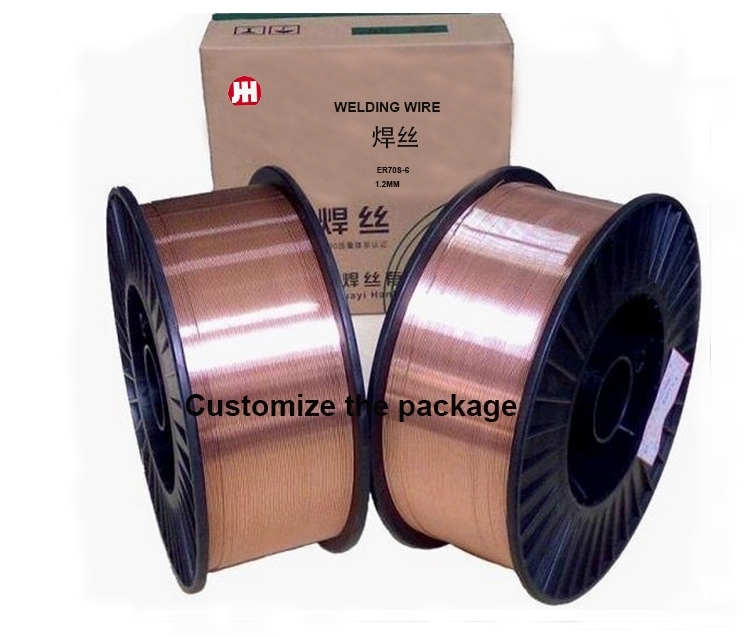

OEM/ODM Package Available:

we also can do different kgs package, different brand print.

we can print the package as your requests, we have professional designer to make the package design with your brand & LOGO.

Welcome to visit us for a friendly and long term cooperation, please tell us your time schedule, we will arrange for you. we will also join the relate exhibitions, we can meet each other on the exhibition. Friendship first, and business is professional, you can trust us forever.

1.Is the Supplier Reliable?

We produce this products more than 30 years, we have advertise on Alibaba, Made-in-China, after you place the order, whenever you want to see the production, we can send you video or picture to check. Our export team also have more than 15 years experience, we can solve all the problem you may meet in business. Welcome to visit us.

2.Is the Quality Stable?

We do test randomly in production, and test shipment before ex works. We have professional QC workers and high level test equipment, to assure each shipment in good quality.

3.Is the Payment Safe?

We choose one of the largest bank in China, to assure your payment will arrive in safe condition, and all of the benefit company must send them the shipping document copy to bank for record.

4.Shipment Delivery?

Normally we can arrange shipment in 15 days, if customize the package, shipment can be arranged in one month, please negotiate with our customer service, we will tell you a firm date after check our production and your order quantity.
