Stainless Steel Welding Electrode

ER304

Uses: Suitable for welding base metals with similar composition, such as OCr19Ni9, 00Cr19Ni10, 304, 308 steel.

ER308

Uses: Suitable for welding base metals with similar composition, such as OCr19Ni9, 00Cr19Ni10, 304, 308 steel.

ER308L

Uses: For welding 18Cr-8Ni stainless steel, the arc is stable, due to the increase of Si content, the welding operability and the fluidity of soldering gold are improved.

ER308Lsi

Uses: For welding 18Cr-8Ni stainless steel, the arc is stable, the weld bead is beautiful, and the crack resistance is strong. Due to the increase of Si content, the welding operability and the fluidity of molten gold are improved.

ER308H

Uses: For welding 18Cr-8Ni stainless steel, the arc is stable, the weld bead is beautiful, and the crack resistance is strong.

ER307Si.

Uses: High manganese content makes crack sensitivity low, suitable for non-magnetic steel, high manganese steel, hardened wear-resistant steel and other difficult-to-weld steels.

ER307

Uses: Suitable for hardened steel, magnetic steel and other difficult-to-weld steels.

ER309

It is used for welding 22Cr-12Ni steel and dissimilar materials. It has good heat resistance and corrosion resistance, stable arc and beautiful weld seam.

ER309L

Uses: For dissimilar metal welding, good heat and corrosion resistance, stable arc, good workability.

ER309Lsi

Uses: For dissimilar metal welding, good heat resistance and corrosion resistance, stable arc, good workability, due to the increase in Si content, welding operability and molten gold fluidity

ER309si

Uses: For dissimilar metal welding, good heat resistance and corrosion resistance, stable arc, good workability

ER309LMo

Uses: Good resistance to hot cracking and corrosion at high temperature, the weld metal is ultra-low carbon austenite, suitable for welding of dissimilar metals between low carbon steel and stainless steel.

ER309MoL.

Uses: Good resistance to hot cracking and corrosion at high temperature, the weld metal is ultra-low carbon austenite, suitable for welding of dissimilar metals between low carbon steel and stainless steel.

ER310

Uses: molten gold contains 25Cr-20Ni, mostly used for welding 310S stainless steel than KMS, 309 is more suitable for dissimilar metal welding and welding of high self-hardening alloy steel and high carbon steel

ER312

Uses: For welding of dissimilar steels, the crack sensitivity is low, so it is difficult to weld or prone to pores when welding steel such as cladding steel and stainless steel lining.

ER316

Comply with GB/T HOCr19Ni12Mo2. For welding of 18Cr-12Ni-2.5Mo (SUS316) steel, the arc is stable and the weld bead is beautiful.

ER316L

Uses: Welding 18Cr-12Ni-Mo2 ultra-low carbon stainless steel, with good welding process and excellent intergranular corrosion resistance.

ER316Lsi.

Uses: Welding 18Cr-12Ni-Mo2 ultra-low carbon stainless steel, good welding process, excellent intergranular corrosion resistance, due to the increase in Si content, welding operation and molten gold fluidity.

ER317

Uses: Ultra-low carbon content and high Mo content, anti-intergranular corrosion, high temperature strength.

ER317L

Uses: Ultra-low carbon content and high Mo content, anti-intergranular corrosion, high temperature strength.

ER318

Uses: Suitable for 18Cr-12Ni-2.5Mo-Ti steel, the working temperature can reach 400 ℃, excellent intergranular corrosion resistance.

ER318Si

Uses: suitable for 18Cr-12Ni-2.5Mo-Ti steel, excellent intergranular corrosion resistance, due to the increase of Si content, welding operability and molten gold fluidity

ER347

Uses: Due to the addition of Nb and other alloying elements, the intergranular corrosion resistance of the weld bead is enhanced, and it has excellent high temperature strength, especially suitable for welding heat-resistant steel

R2209

Uses: Suitable for 22Cr-9Ni-Mo3 duplex stainless steel, such as UNS31803 (904L)

ER385

Uses: suitable for 20Cr-25Ni-4.5Mo-1.5Cu stainless steel, especially corrosion-resistant

ER410

Uses: Used for welding 410 or 420 series stainless steel, high hardening, high temperature oxidation resistance, corrosion resistance, used in petroleum refining and chemical industry and surfacing repair

ER420

Uses: Suitable for welding 13Cr or 17Cr martensitic stainless steel.

Need a quick quotation for stainless steel electrodes? Chat with us on WhatsApp or email info@steeltoolschina.com.

See the full stainless steel welding rods range.

Stainless Steel Welding Electrode FAQ

Which stainless steel electrode grade should I choose?

Match the base metal first: E308 for 304, E316 for 316 and 316L, E309 for joining stainless to carbon steel, and E312 where high strength and crack resistance on dissimilar joints matter more than matching composition.

What current do stainless electrodes use?

AC or DC electrode positive. Stainless electrodes are run on the positive polarity because it gives a stable arc and good penetration, and the current should be kept low to avoid overheating the chrome in the deposit.

Why does stainless steel distort so much?

Low thermal conductivity means heat stays local and the expansion has nowhere to go. Low current, short arcs, balanced sequence and back stepping are the standard controls, rather than trying to weld faster.

What sizes and packing are supplied?

2.5mm at 300 or 350mm, 3.2mm at 350mm, 4.0mm at 400mm and 5.0mm at 450mm. Packed 2.5kg per box at 20kg per carton of eight boxes for 2.5mm, and 5kg per box at 20kg per carton of four boxes for the larger sizes.

Do stainless electrodes need special storage?

They should stay dry like any covered electrode, but they are less sensitive to hydrogen than a basic low hydrogen type. The real risks are moisture pickup causing porosity and contamination of the coating by carbon steel dust.

2.5mm (3/32”) x 300/350mm; 2.5kgs/box, 20kg(8boxes) per carton.

3.2mm (1/8”) x 350mm; 5kgs/box, 20kg(4boxes) per carton.

4.0mm (5/32”) x 400mm; 5kgs/box, 20kg(4boxes) per carton.

5.0mm x 450mm; other size please contact our service.

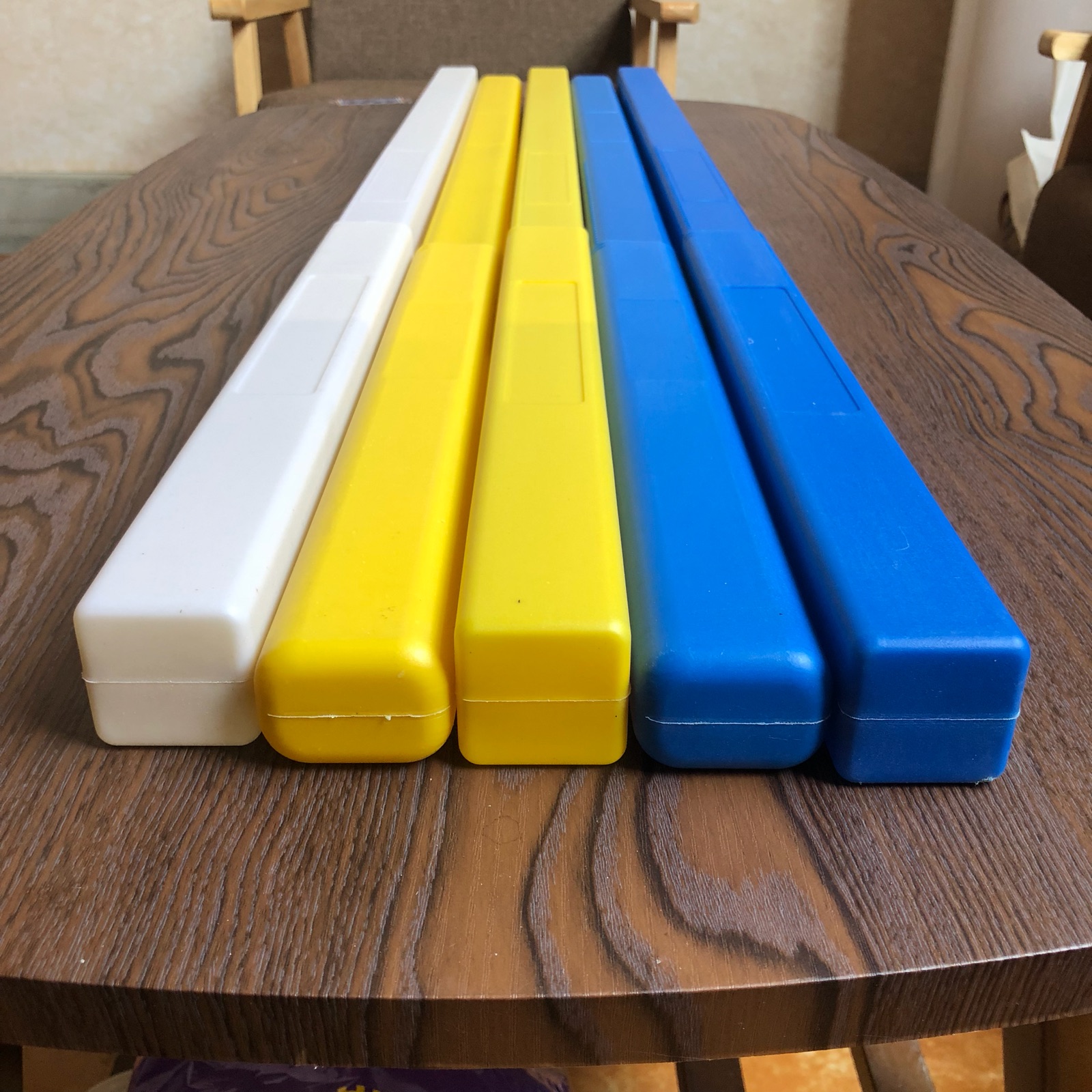

OEM/ODM Package Available:
