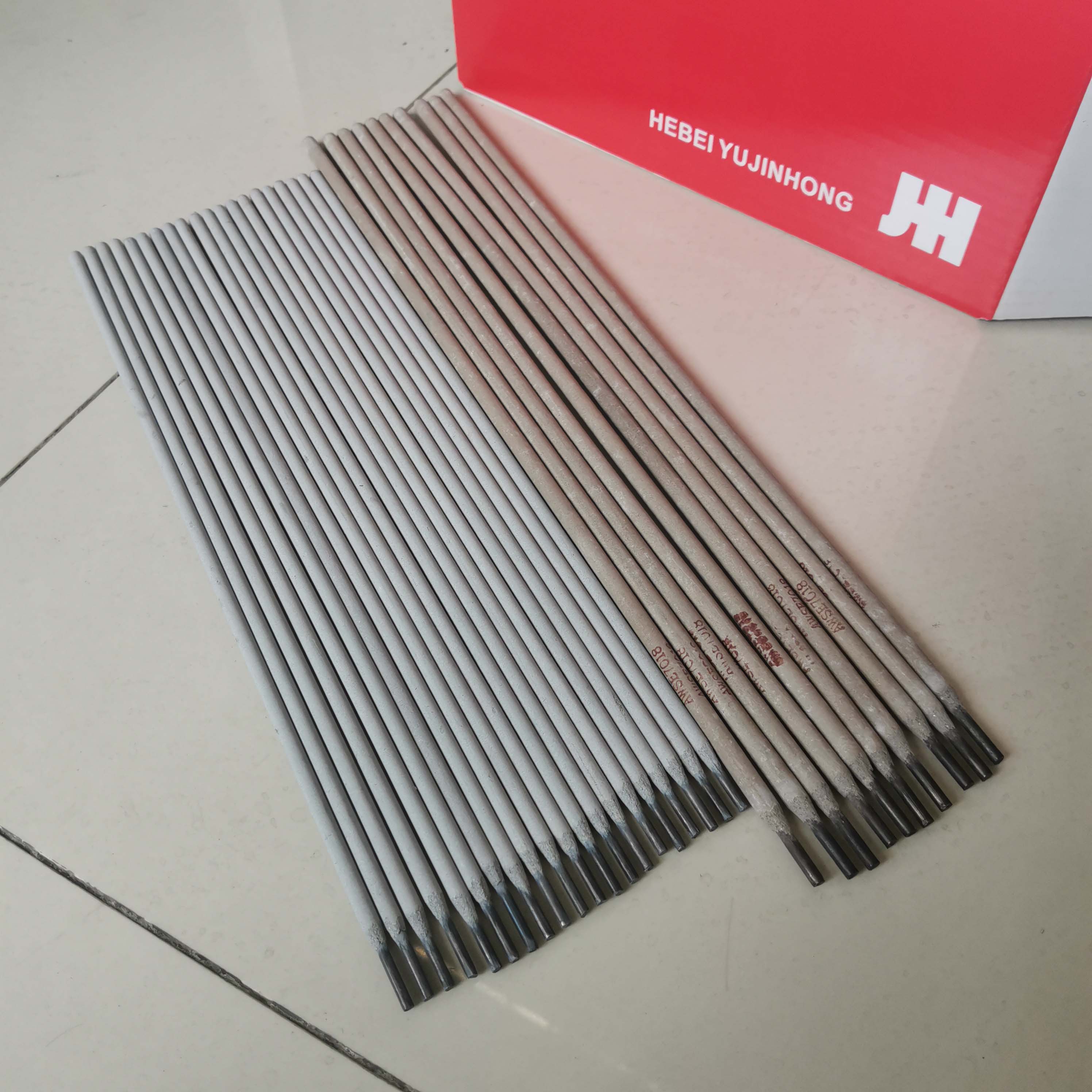

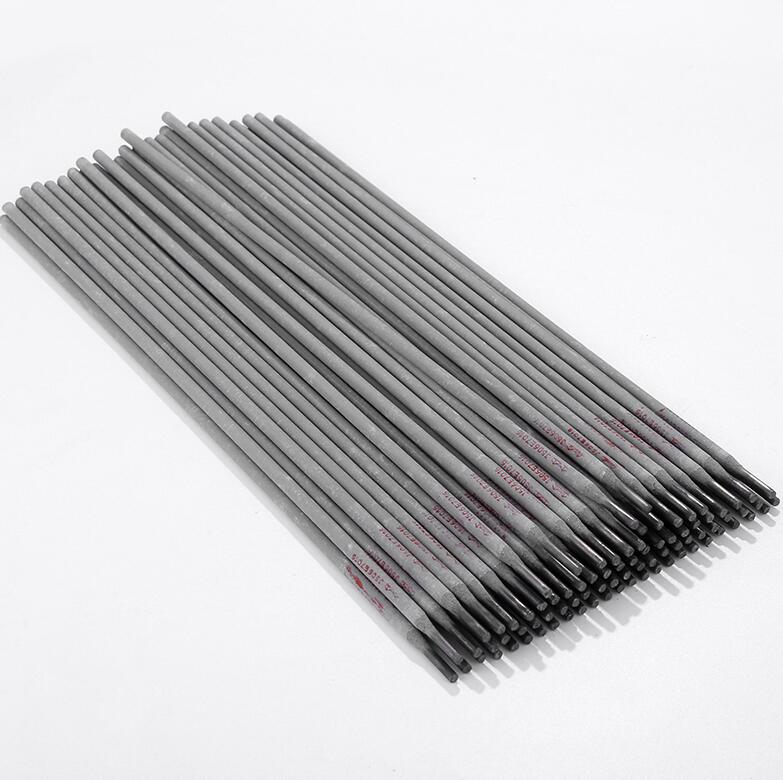

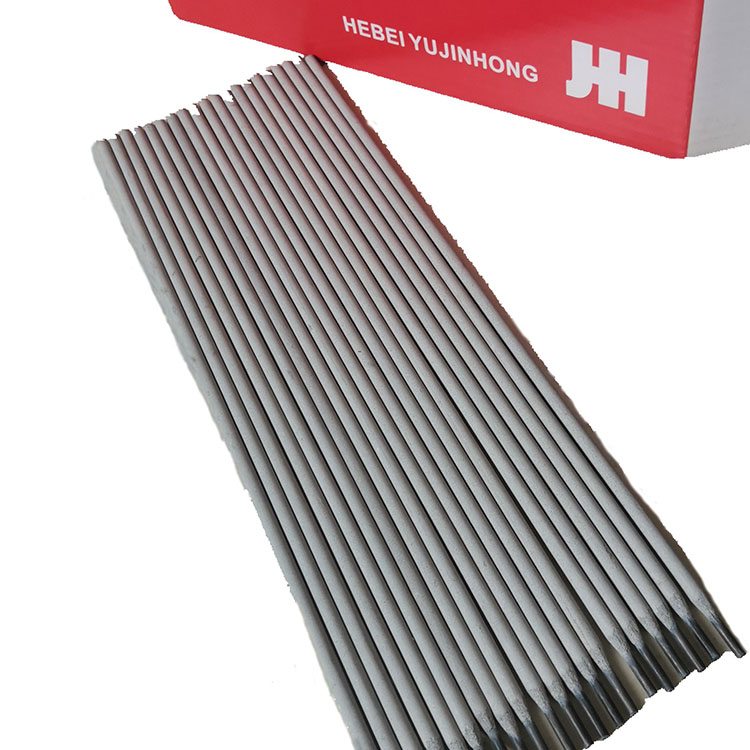

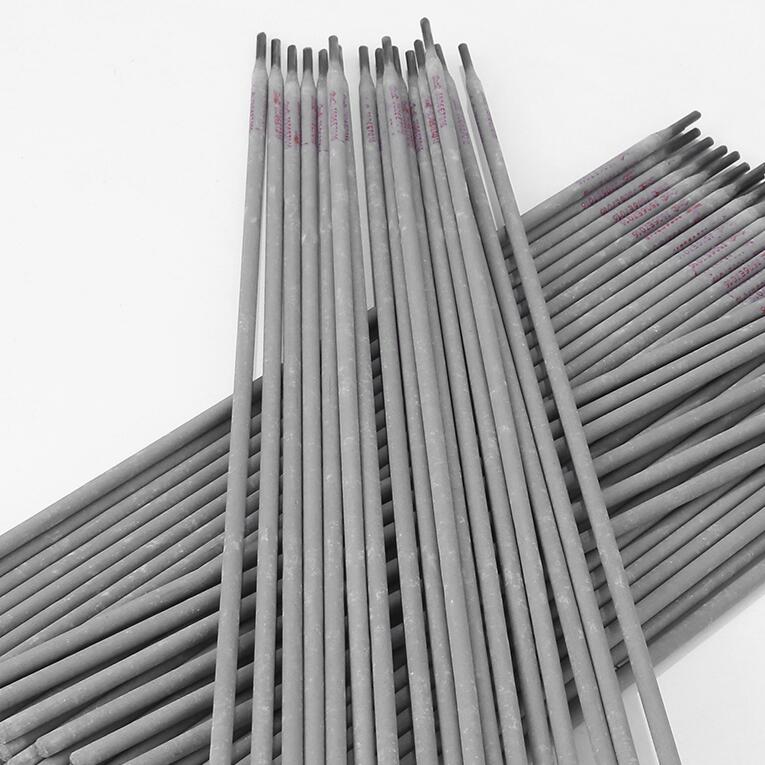

J506 Welding Electrode

J506 ( E7016 ) is a low hydrogen potassium type basic coated electrode.

Both AC and DC can be used and can be all-position welding.

It can reach to excellent welding performance, stable arc, little spatter, easy slag removal and good weld appearance.

Weld metal has excellent mechanical properties and crack resistance

The full name of 7016 electrode is E7016 electrode, that is, low hydrogen potassium carbon steel electrode, which is suitable for welding medium carbon steel and important low alloy steel. This kind of electrode should be dried before use, and the weldment should be processed. It is necessary to clean up the oil stains, rust stains and moisture on the surface. It is best to use the two methods of short arc welding and narrow pass welding.

WELDING POSITIONS: PA,PB,PC,PD,PE,PF

With more than 20 years production experience, we have professional production team, skilled workers, support OEM / ODM and could make packaging according to your design. As professional welding electrode manufacturer, we have strong technical power, complete product testing equipment so that we can keep stable product quality. Our products include kinds of welding electrodes, such as low carbon steel, Iow alIoy steel, heat-resistant steels, low temperature steel, stainless steel, cast iron, hard surfacing welding electrodes and Stainless Steel welding rods.

The products are widely used in various national economic fields, such as machinery, metallurgy, petroleum chemical industry, boiler, pressure vessel, the ships, the buildings, bridges, and so on, The products are sold to all over the country, and well received by the vast users. Our products have excellent performance, stable quality, elegant welding molding, and good slag removal, good ability to resist rust, Stomata and crack, good and stable deposited metal mechanics performance. Our products are one hundred percent exported and have sold world widely, mainly to US, Europe, South America, Australia, Africa, Middle East, Southeast Asia and etc. Our products meet customers’ warm welcome due to the excellent quality, outstanding performance and competitive price.

Please contact us freely if any questions.

Need a quick quotation for E7016? Chat with us on WhatsApp or email info@steeltoolschina.com.

See the full E7016 low hydrogen electrodes range, or browse all welding electrodes.

E7016 J506 Welding Rod FAQ

What is a J506 welding rod?

J506 is the Chinese GB designation for a low hydrogen potassium basic electrode depositing at around 490 MPa. It corresponds to AWS A5.1 E7016 and GB/T 5117 E5016, and is the grade usually quoted on Chinese drawings.

What current can J506 run on?

Both AC and DC. The basic coating is formulated to hold a stable arc on alternating current as well as direct current, so the same electrode suits a transformer welder or a DC machine.

What sizes and packing are supplied?

2.0mm at 300mm and 2.5mm at 300mm or 350mm, packed 2.5kg per box at 20kg per carton of eight boxes. 3.2mm at 350mm and 4.0mm at 400mm pack 5kg per box at 20kg per carton of four boxes.

Does J506 need drying before use?

Yes. The basic coating picks up moisture once the package is opened, and moisture converts directly into diffusible hydrogen in the weld. Electrodes should go into a holding oven after opening, and damp electrodes should not be used.

What is J506 used for?

Medium carbon and low alloy structural steel where crack resistance matters. Typical work includes structural frames, machinery parts and restrained joints that a rutile electrode such as E6013 would put at risk of cold cracking.

2.0mm (5/64”) x 300mm,   2.5kgs/box, 20kg(8boxes) per carton.

2.5mm (3/32”) x 300/350mm;   2.5kgs/box, 20kg(8boxes) per carton.

3.2mm (1/8”) x 350mm;        5kgs/box, 20kg(4boxes) per carton.

4.0mm (5/32”) x 400mm;       5kgs/box, 20kg(4boxes) per carton.

5.0mm x 450mm; other size please contact our service.

OEM/ODM Package Available:

NW: 20.00KG,GW: 20.40KG,

we also can do different kgs package, plastic bag package,

we can print the package as your requests, we have professional designer to make the package design with your brand & LOGO.

Welcome to visit us for a friendly and long term cooperation, please tell us your time schedule, we will arrange for you. we will also join the relate exhibitions, we can meet each other on the exhibition. Friendship first, and business is professional, you can trust us forever.

1.Is the Supplier Reliable?

We produce this products more than 30 years, we have advertise on Alibaba, Made-in-China, after you place the order, whenever you want to see the production, we can send you video or picture to check. Our export team also have more than 15 years experience, we can solve all the problem you may meet in business. Welcome to visit us.

2.Is the Quality Stable?

We do test randomly in production, and test shipment before ex works. We have professional QC workers and high level test equipment, to assure each shipment in good quality.

3.Is the Payment Safe?

We choose one of the largest bank in China, to assure your payment will arrive in safe condition, and all of the benefit company must send them the shipping document copy to bank for record.

4.Shipment Delivery?

Normally we can arrange shipment in 15 days, if customize the package, shipment can be arranged in one month, please negotiate with our customer service, we will tell you a firm date after check our production and your order quantity.
