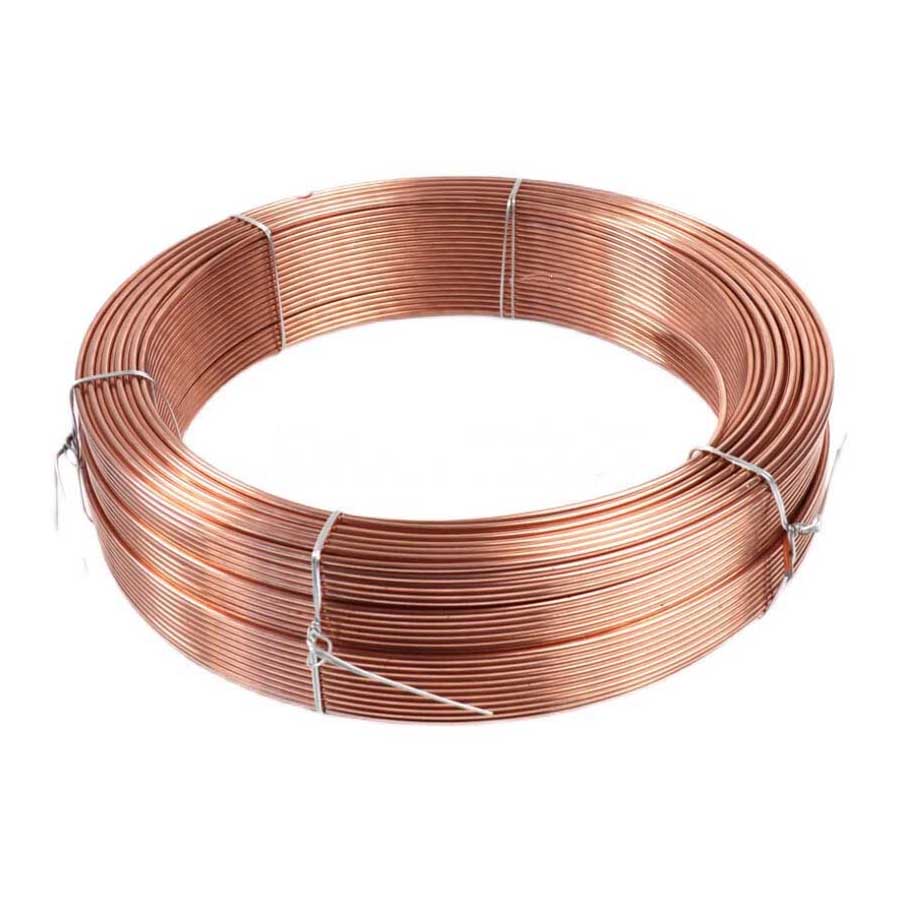

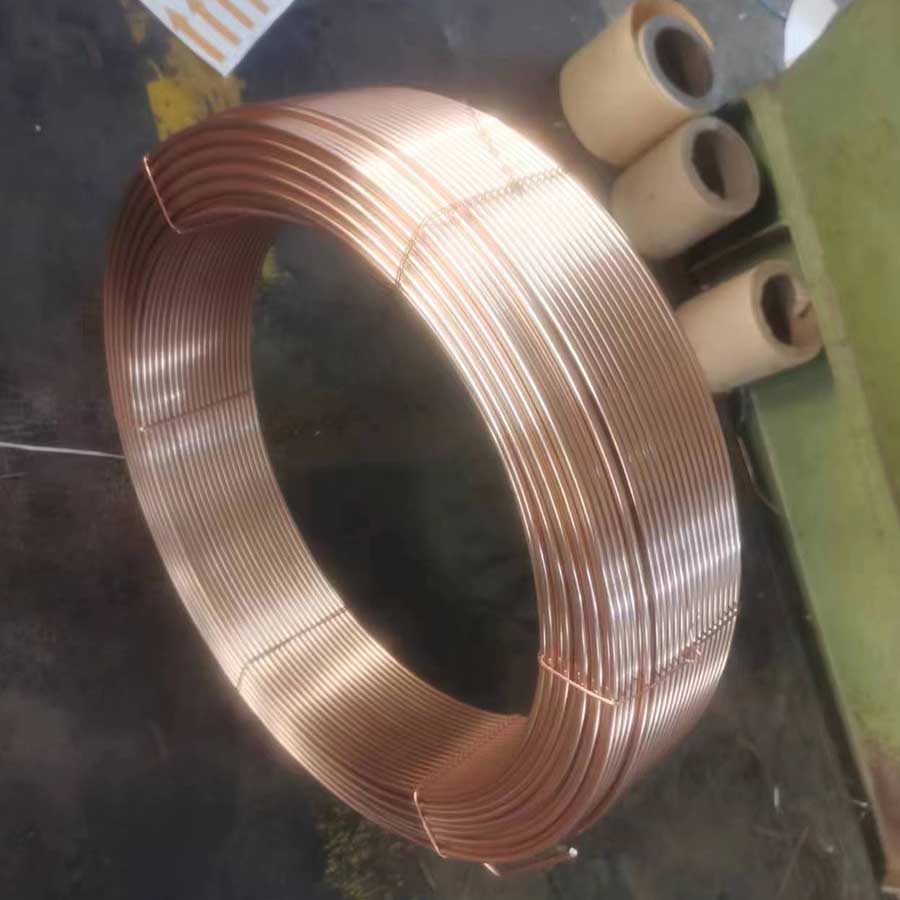

Submerged Arc Welding Wire

Grade: AWS A5.17 -EL12 EM12 EM12K

Submerged arc welding wire is a kind of welding material, which is used for welding carbon steel with correspondingly lower strength alloy steel.

The welding material is composed of welding wire and flux. During submerged arc welding, the composition and performance of the weld are determined by the welding wire and flux. The selection of submerged arc welding wire should consider not only the influence of flux composition, but also the influence of base metal composition. In order to achieve the required weld metal composition, a flux (smelting flux) can also be used in combination with several welding wires. It is also possible to use a kind of welding wire to cooperate with several kinds of fluxes (sintered fluxes).

Submerged arc welding wire is a welding material in which the arc is automatically buried in the weld during the welding process, thereby automating the weld.

1. Stable weld quality Submerged arc welding wire has a fast welding speed, so it is very suitable in the production line workshop where welding is fast, which can ensure consistent and stable weld quality, and can also ensure the stability of the welding arc. Submerged arc welding wire is compact and therefore provides a more uniform spray process than other welding methods without excessive spatter in the weld.
2. Strong welding ability Submerged arc welding wire can weld large-diameter metals, such as steel bars. It is also capable of welding breast plates, wheel axles and similar structures, making it versatile and can be used in other areas of production.
3. Low risk factor As a kind of organic integral welding, the working environment of submerged arc welding wire will be cleaner than other welding methods, so workers can work in a relatively safe environment, and the risk factor is much lower. At the same time, the distance between the arc and the welding place is automatically adjusted by the machine system, and the operation is simpler than other welding methods, thus eliminating the risk of more extreme conditions in the welding process.
4. Wide range of applications Finally, for factories and supermarkets where people are active, the use of submerged arc welding wire can save workers' time, energy and money, and at the same time save energy and ensure a clean environment, thus providing achievable support for robot operations .

Need a quick quotation for submerged arc welding wire? Chat with us on WhatsApp or email info@steeltoolschina.com.

See the full submerged arc welding wire range, or browse all copper coated welding wire.

Submerged Arc Welding Wire FAQ

What is submerged arc welding wire?

It is a bare solid wire fed into a blanket of granular flux. The arc burns under the flux, so there is no visible arc, almost no fume and no spatter, which is why SAW is used for long straight seams on thick plate.

Why does SAW need a matching flux?

The wire and the flux together determine the deposit chemistry and the mechanical properties. Changing flux without changing wire changes silicon, manganese and oxygen in the weld, so the certificate only applies to the tested combination.

What thickness is SAW used for?

Normally from around 10mm upward, because the process is set up for deep penetration at high current. It is the standard method for pressure vessel shells, pipe longitudinal seams, beams and heavy structural sections.

What wire diameters are supplied?

2.0mm, 2.5mm, 3.0mm and 4.0mm are the common sizes, supplied on 25kg, 50kg or 100kg coils depending on the size and the customer's feeder. Larger diameters carry higher current for deeper single pass penetration.

Does SAW wire need to be dry?

Yes. Moisture on the wire or in the flux goes straight into the weld as hydrogen, and SAW deposits are thick enough that hydrogen cracking becomes a real risk. Both wire and flux should be stored dry and flux should be baked.

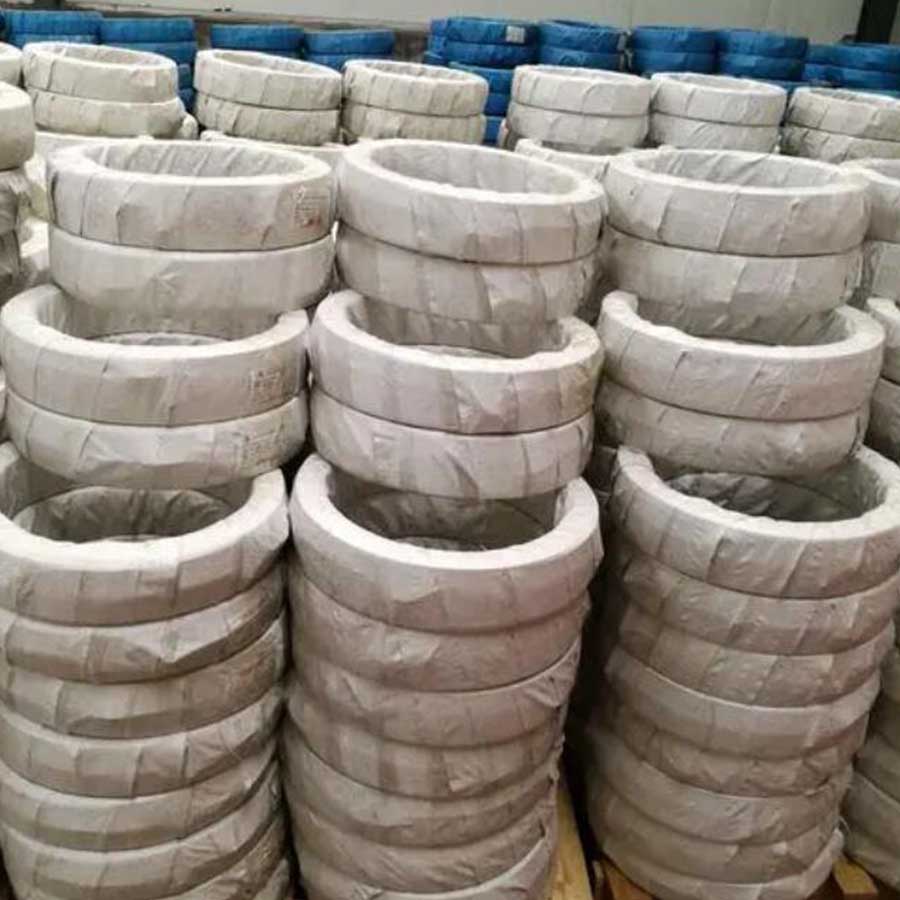

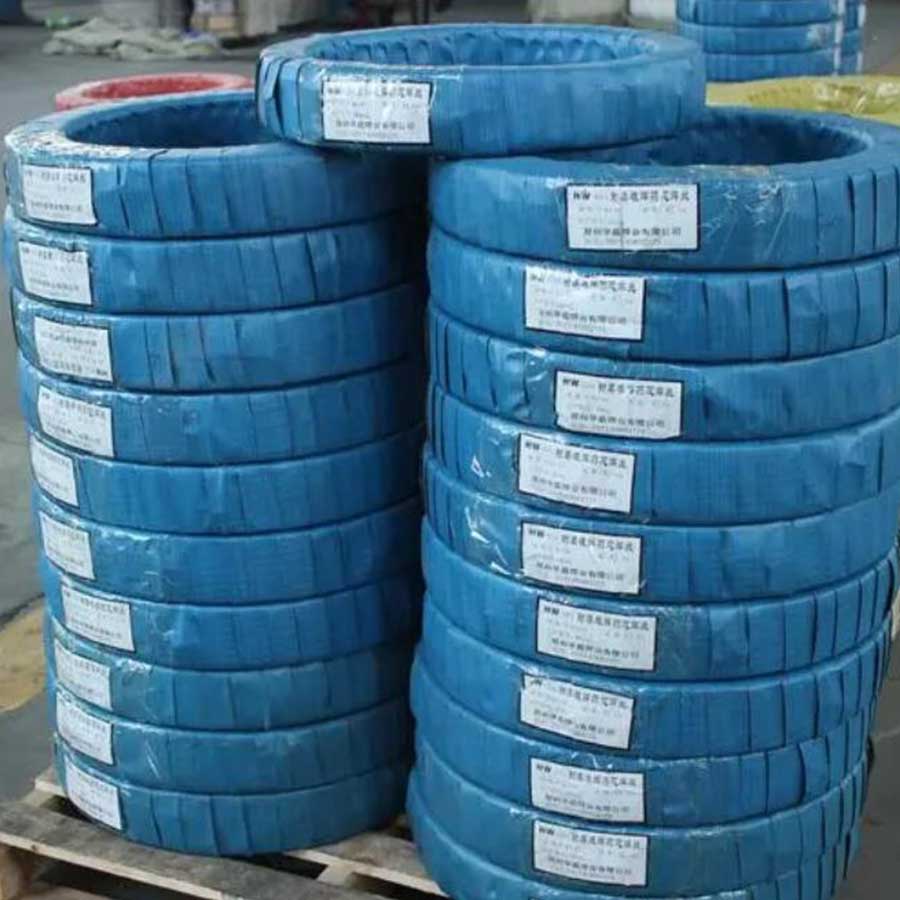

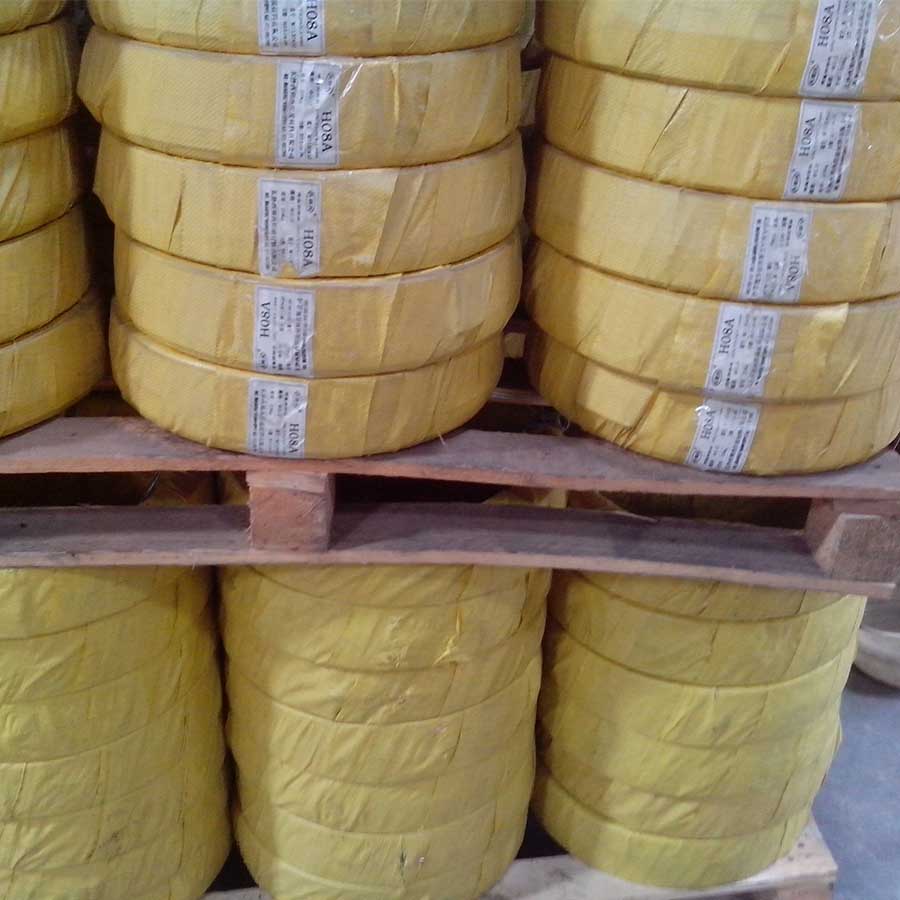

1. 25kg, 50kg, 150kg, 200kg, 350kg, 500kg, 1000kg all available, transverse wind without core, Vaccum packing

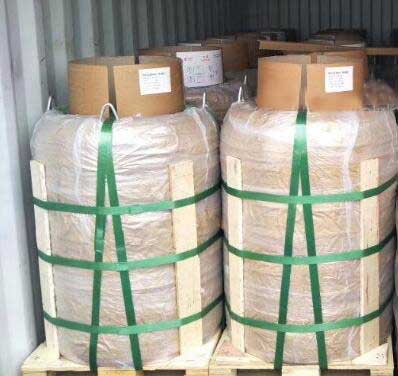

2. 250kg, 500KGS steel spool;  Submerged-arc welding wire can be packed as your requirements.

Specifications: EL9, EM12, EH14, EM13K, EL12,EB2 etc. 1.6mm, 2.0mm,2.4mm,3.2mm,4.0mm,5.0mm

Color print box is available.

OEM/ODM Package Available:

we also can do different kgs package, different brand print.

we can print the package as your requests, we have professional designer to make the package design with your brand & LOGO.

Welcome to visit us for a friendly and long term cooperation, please tell us your time schedule, we will arrange for you. we will also join the relate exhibitions, we can meet each other on the exhibition. Friendship first, and business is professional, you can trust us forever.

1.Is the Supplier Reliable?

We produce this products more than 30 years, we have advertise on Alibaba, Made-in-China, after you place the order, whenever you want to see the production, we can send you video or picture to check. Our export team also have more than 15 years experience, we can solve all the problem you may meet in business. Welcome to visit us.

2.Is the Quality Stable?

We do test randomly in production, and test shipment before ex works. We have professional QC workers and high level test equipment, to assure each shipment in good quality.

3.Is the Payment Safe?

We choose one of the largest bank in China, to assure your payment will arrive in safe condition, and all of the benefit company must send them the shipping document copy to bank for record.

4.Shipment Delivery?

Normally we can arrange shipment in 15 days, if customize the package, shipment can be arranged in one month, please negotiate with our customer service, we will tell you a firm date after check our production and your order quantity.
